Night vision assist, networking of components - GF54.30-P-0005-02SX

MODEL 221.0 /1, 216.3 with CODE (610) Night vision assist up to Model Year 8

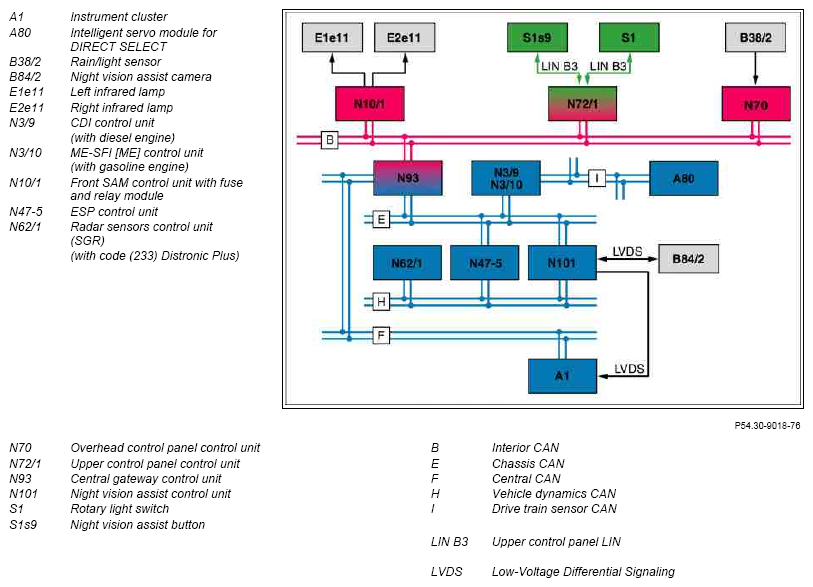

Fig 1: Night Vision Assist Block Diagram

Courtesy of MERCEDES-BENZ USA
