Night View Assist, block diagram - GF54.30-P-0005-03LE

MODEL 216.3, 221.0 /1 with CODE (610) Night vision assist as of Model Year 2009 /AEJ 08

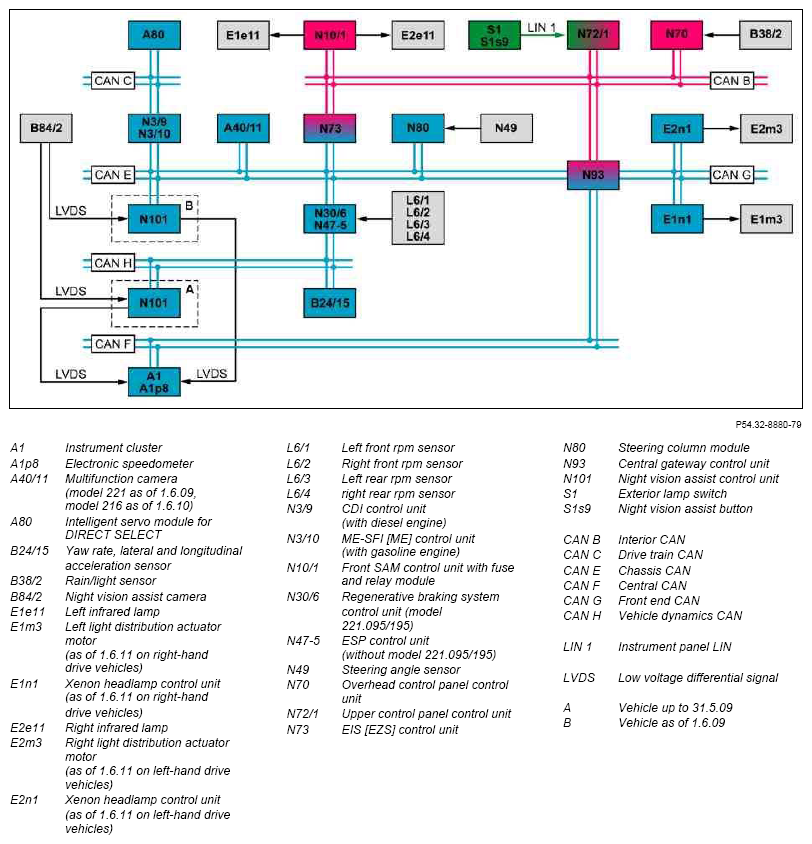

Fig 1: Night Vision Assist Block Diagram

Courtesy of MERCEDES-BENZ USA
