Instrument cluster (IC), networking of components - GF54.30-P-0002-06SX

MODEL 221.0 /1, 216.3 up to Model Year 8

Networking of components shown on model 221 with engine 272 up to 31.8.06

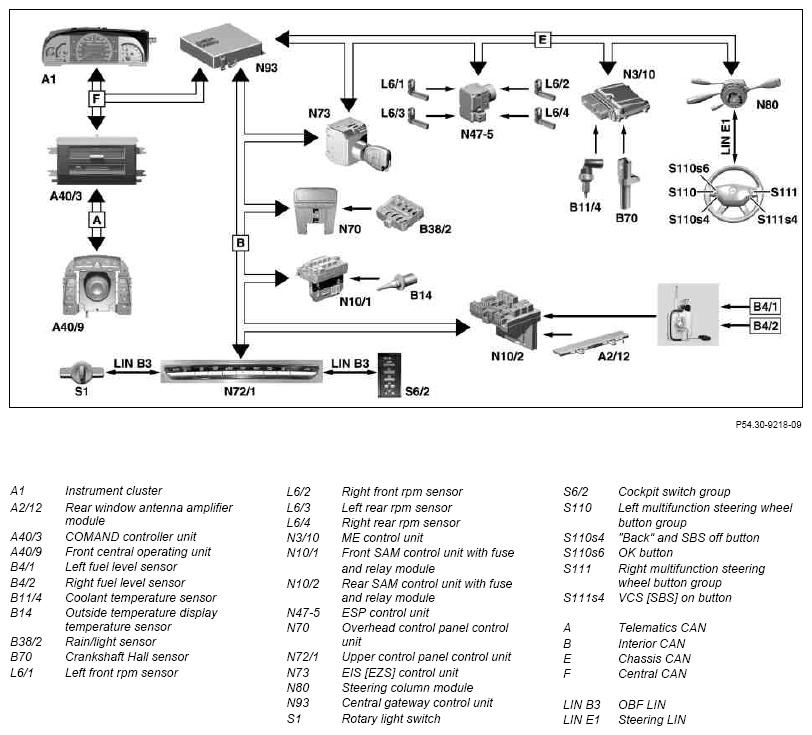

Fig 1: Instrument Cluster Communication Diagram
