Instrument cluster (IC), location of components - GF54.30-P-0002-04LE

MODEL 216.3, 221.0 /1 as of Model Year 2009 /AEJ 08

Shown on model 221.0 up to 31.5.09

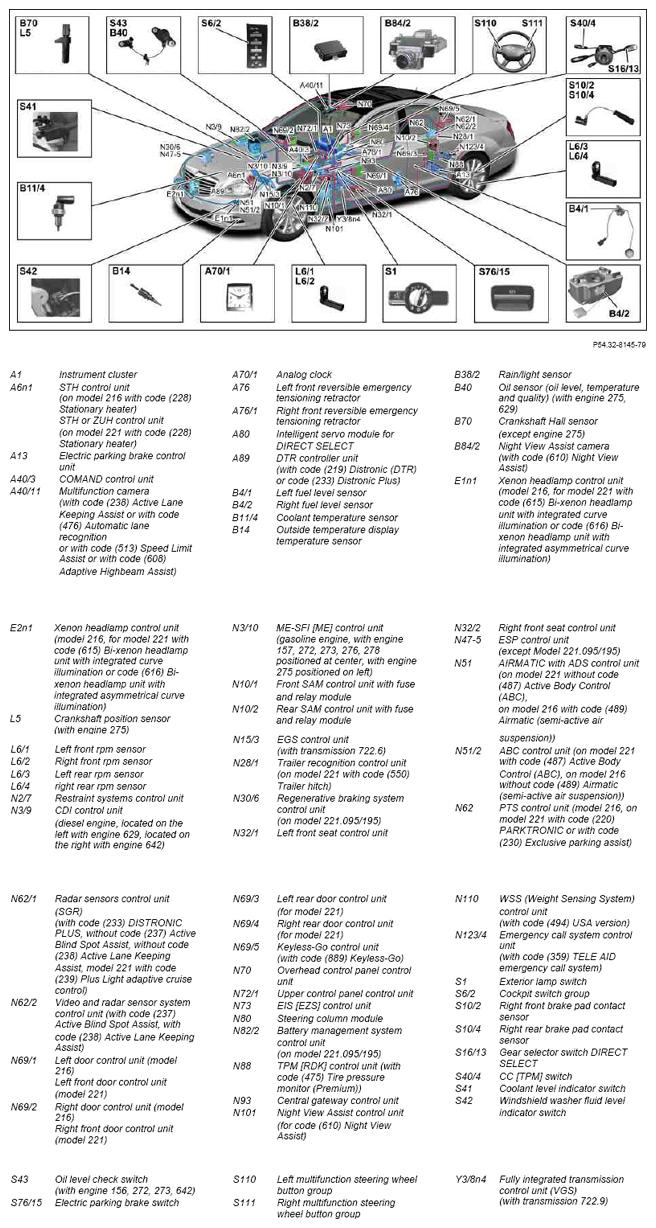

Fig 1: Instrument Cluster Components Location - Shown On Model 221.0 Up To 31.5.09

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 as of 1.6.09

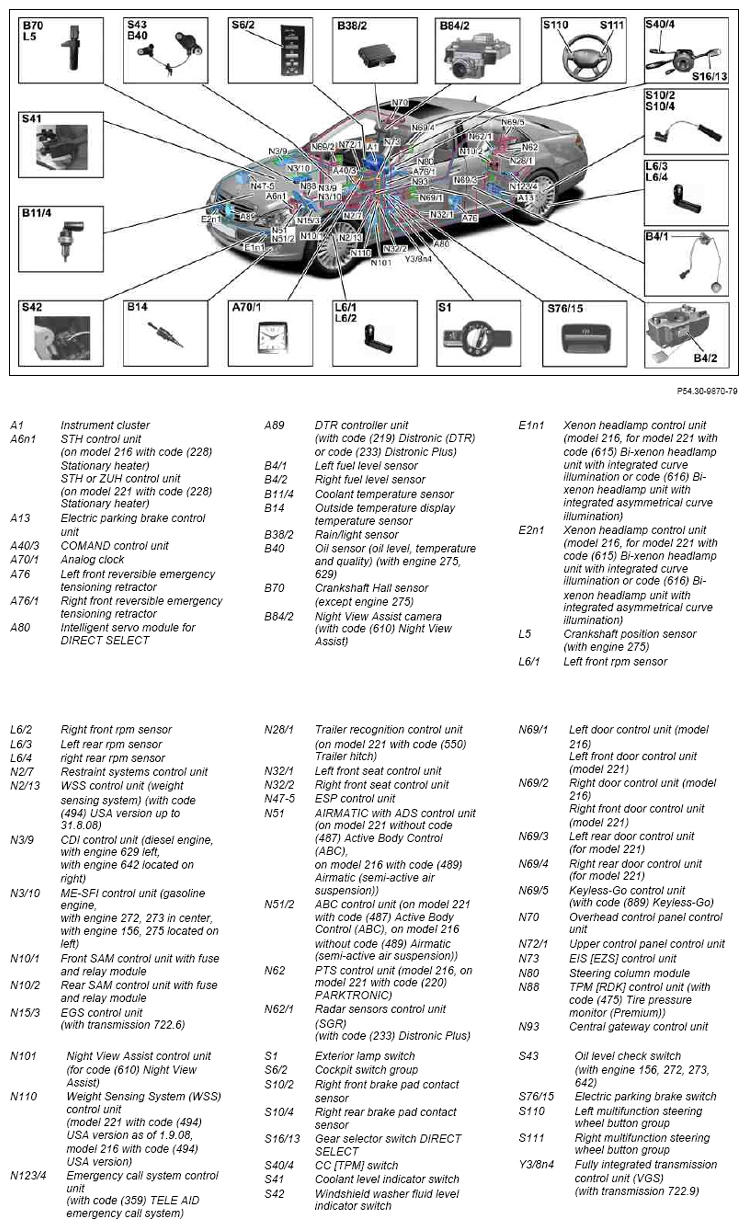

Fig 2: Instrument Cluster Components Location - Shown On Model 221.0 As Of 1.6.09

Courtesy of MERCEDES-BENZ USA
