Energy management, location of components - GF54.10-P-0003-01LE

MODEL 216.3, 221.0 /1 as of Model Year 2009 /AEJ 08

Shown on model 221

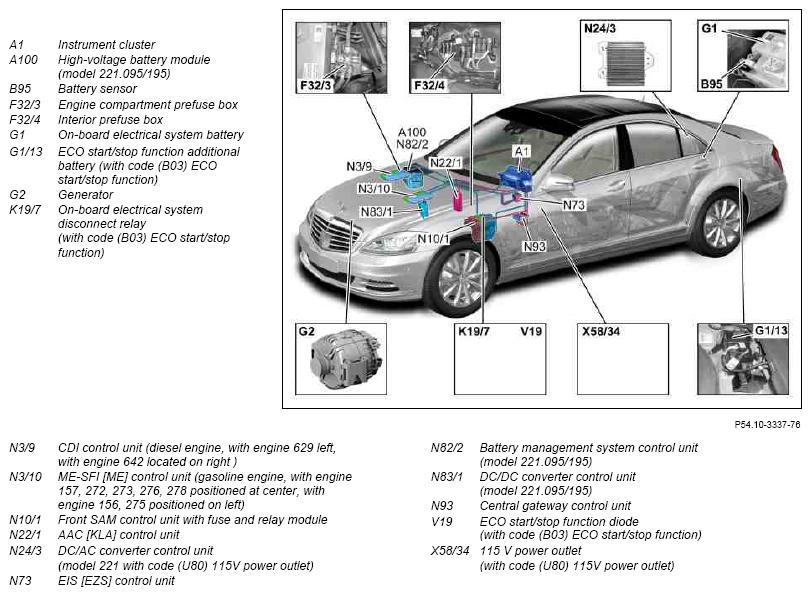

Fig 1: Energy Management Components Location

Courtesy of MERCEDES-BENZ USA
