Electrical System, Equipment & Instruments - 216 Chassis - 1 Of 6
>>
Basic Knowledge
>>
2-battery on-board electrical system, block diagram - GF54.10-P-0001-02SX
2-battery on-board electrical system, block diagram - GF54.10-P-0001-02SX
MODEL 216.3, 221.0 /1 up to Model Year 8

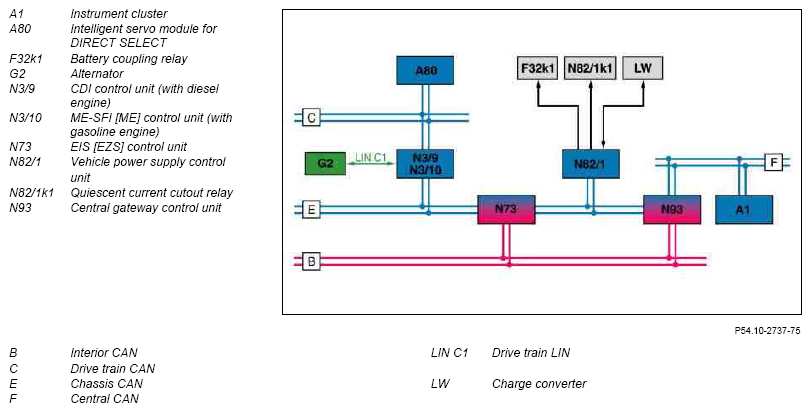

Fig 1: Battery On-Board Electrical System Block Diagram
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
