Remove/install vacuum pump - AR43.05-P-1320MMB
MODEL 216, 221 with ENGINE 157, 278
MODIFICATION NOTES
| 27.7.10 | Detach vacuum hose from vacuum pump, added | Step 8 |
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove engine trim panel | ||
| 2 | Remove left-hand air filter housing | ||
| 3 | Remove insulation on left rail | ||
| 4 | Remove center section of bulkhead | ||
| 5 | Detach engine wiring harness to ME-SFI [ME] control unit (N3/10) and rear intake manifold | AR01.00-P-2410-02MMB | |
| 6 | Unclip engine wiring harness to intake manifold and place to one side | ||

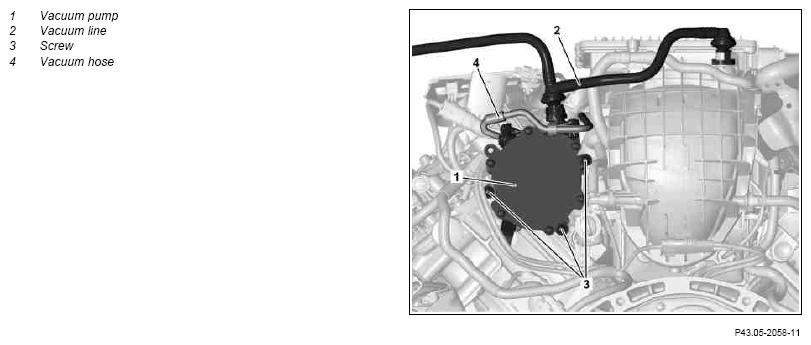

| 7 | Detach vacuum line (2) to vacuum pump (1) and intake manifold | ||
| 8 | Detach vacuum hose (4) from vacuum pump (1) | ||
| 9 | Remove bolts (3) from vacuum pump (1) | ||
| *BA43.05-P-1001-01K | |||
| 10 | Remove vacuum pump (1) upwards | ||
| 11 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Test run engine and carry out leak check |
VACUUM PUMP
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA43.05-P-1001-01K | Bolt, vacuum pump to cylinder head/cylinder head cover | Nm | 9 | 9 |
