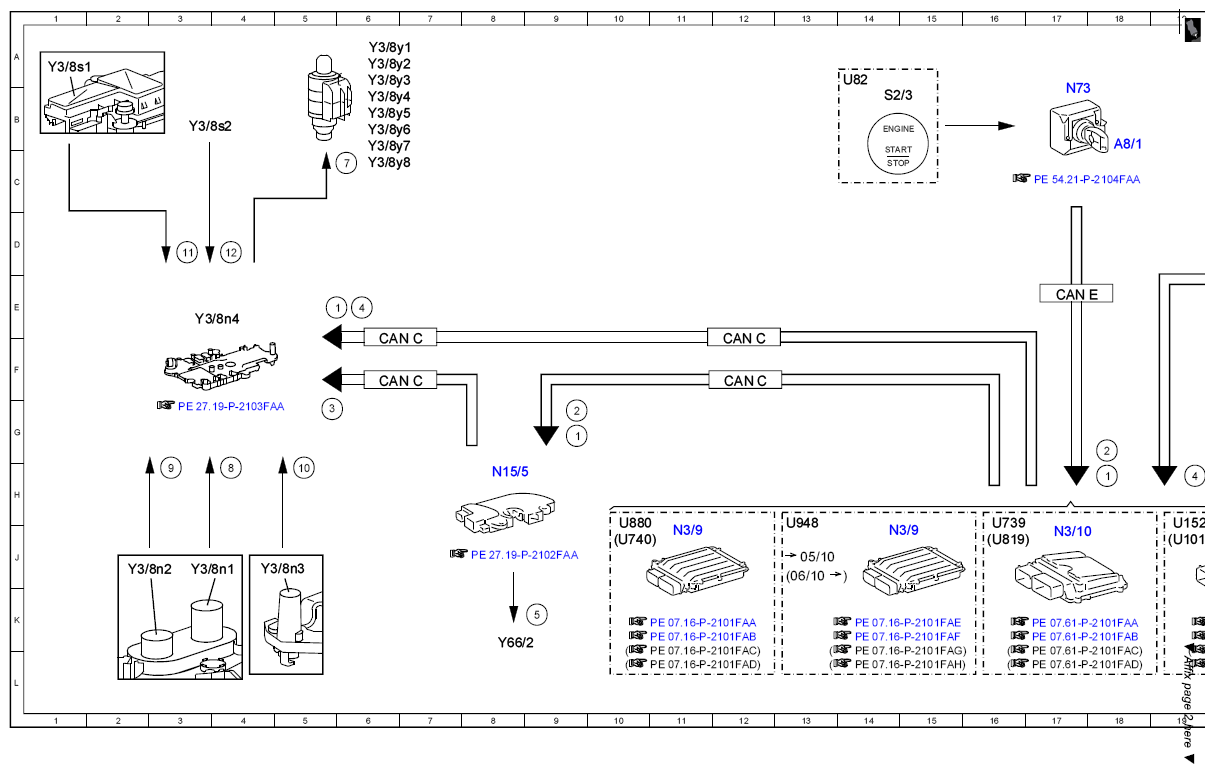

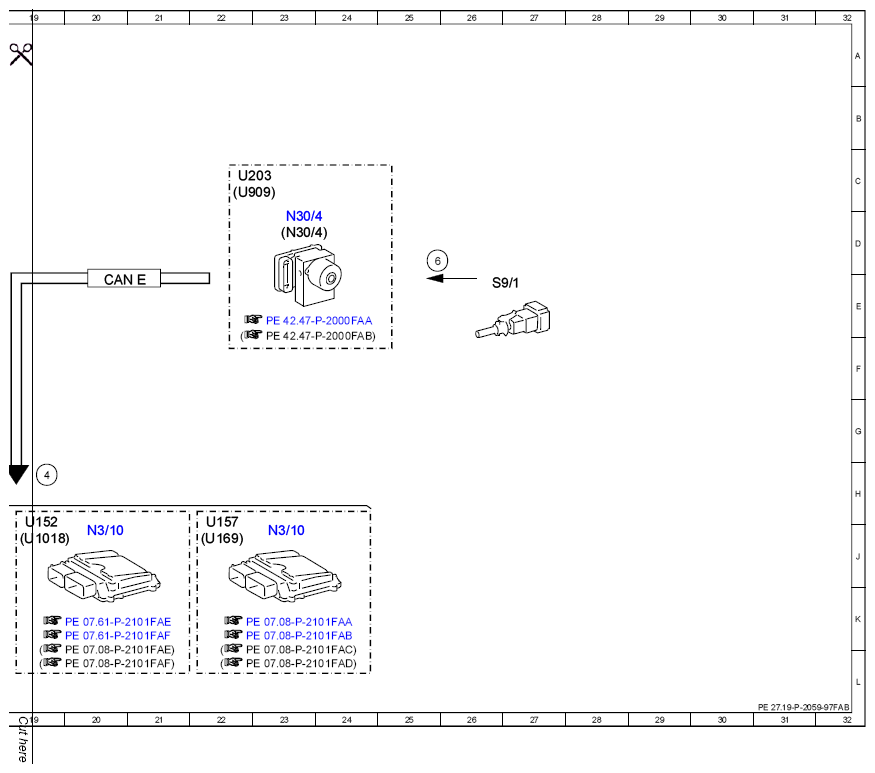

| Code: |
Designation: |
Position: |
| 1 |
Circuit 15, status |
9G |
| 1 |
Circuit 15, status |
5E |
| 1 |
Circuit 15, status |
18H |
| 2 |
DAS [FBS] start enable, status |
9G |
| 2 |
DAS [FBS] start enable, status |
18G |
| 3 |
Selector lever position, status |
5G |
| 4 |
Service brake, status |
6E |
| 4 |
Service brake, status |
19H |
| 5 |
Selector lever positions R and P locking solenoid, actuation |
9K |
| 6 |
Brake light switch, status |
25D |
| 7 |
Control solenoid valve, actuation |
6C |
| 8 |
Turbine wheel rpm sensor, signal |
4H |
| 9 |
Internal transmission speed rpm sensor, signal |
3H |
| 10 |
Output shaft rpm sensor, signal |
5H |
| 11 |
Selection range sensor, signal |
3D |
| 12 |
Transmission oil temperature sensor, signal |
4D |
| A8/1 |
Transmitter key |
18B |
| CAN C |
Drive train CAN |
12F |
| CAN C |
Drive train CAN |
6F |
| CAN C |
Drive train CAN |
6F |
| CAN C |
Drive train CAN |
12F |
| CAN E |
Chassis CAN |
17E |
| CAN E |
Chassis CAN |
20E |
| N15/5 |
Electronic selector lever module control unit |
8H |
| N3/10 |
ME-SFI [ME] control unit |
17J |
| N3/10 |
ME-SFI [ME] control unit |
20J |
| N3/10 |
ME-SFI [ME] control unit |
23J |
| N3/9 |
CDI control unit |
11J |
| N3/9 |
CDI control unit |
14J |
| N30/4 |
Electronic Stability Program control unit |
23D |
| N30/4 |
Electronic Stability Program control unit |
23D |
| N73 |
Electronic ignition switch control unit |
17B |
| S2/3 |
KEYLESS GO start/stop button |
14B |
| S9/1 |
Stop lamp switch |
26E |
| U1018 |
Valid for gasoline engine 276 |
19J |
| U152 |
Valid for gasoline engine 156 |
19J |
| U157 |
Valid for combustion engine 272 DE |
22J |
| U169 |
Valid for gasoline engine 271 DE |
22J |
| U203 |
Valid without DISTRONIC PLUS |
22C |
| U739 |
Valid for gasoline engine 271 continuous fuel injection system (electronic) |
16J |
| U740 |
Valid for diesel engine 646 |
10J |
| U819 |
Valid for gasoline engine 272 |
16J |
| U82 |
Valid for KEYLESS GO |
14A |
| U880 |
Valid for diesel engine 642 |
10J |
| U909 |
Valid for DISTRONIC PLUS |
23C |
| U948 |
Valid for diesel engine 651 |
13J |
| Y3/8n1 |
Turbine wheel rpm sensor |
3J |
| Y3/8n2 |
Internal transmission speed rpm sensor |
2J |
| Y3/8n3 |
Output shaft rpm sensor |
4J |
| Y3/8n4 |
Fully integrated transmission control unit |
3E |
| Y3/8s1 |
Selection range sensor |
1A |
| Y3/8s2 |
Transmission oil temperature sensor |
3B |
| Y3/8y1 |
Working pressure control solenoid valve |
6A |
| Y3/8y2 |
Clutch control solenoid valve K1 |
6A |
| Y3/8y3 |
Clutch control solenoid valve K2 |
6A |
| Y3/8y4 |
Clutch control solenoid valve K3 |
6B |
| Y3/8y5 |
Multidisk brake control solenoid valve B1 |
6B |
| Y3/8y6 |
Multidisk brake control solenoid valve B2 |
6B |
| Y3/8y7 |
Multidisk brake control solenoid valve B3 |
6C |
| Y3/8y8 |
Torque converter lockup clutch control solenoid valve |
6C |
| Y66/2 |
Selector lever positions R and P locking solenoid |
8K |
