Electrical function schematic for tire pressure loss warning (RDW) system - PE40.15-P-2051-99FAA

Code:	Designation:	Position:
1	Wheel speed, signal	5E
2	Yaw rate, lateral and longitudinal acceleration sensor, signal	4D
3	Tire pressure loss warning message, request	4J
A1	Instrument cluster	4J
A1p13	Multifunction display	6K
B24/15	Yaw rate, lateral and longitudinal acceleration sensor	3A
CANE	Chassis CAN	3H
CANH	Vehicle dynamics CAN	3C
L6/1	Left front axle rpm sensor	6E
L6/2	Right front axle rpm sensor	6F
L6/3	Left rear axle rpm sensor	6F
L6/4	Right rear axle rpm sensor	6F
N30/4	Electronic Stability Program control unit	3E

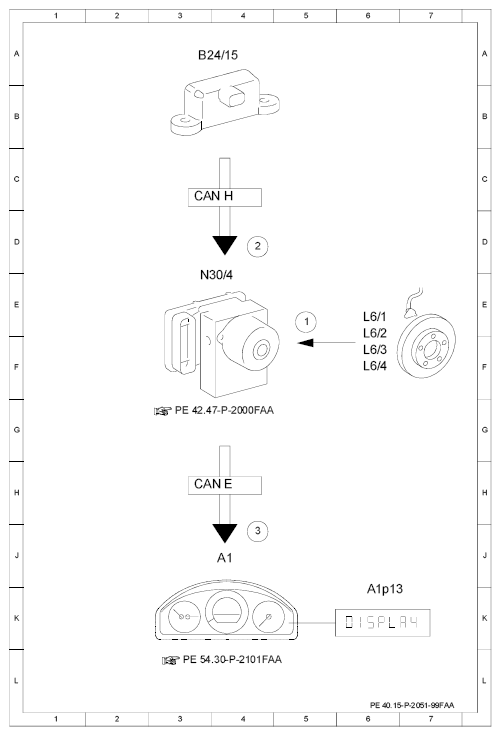

Fig 1: Tire Pressure Loss Warning (RDW) System - Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
