Adjusting fixtures for distance and comparison measurement according to the model concerned - AR40.30-P-0401-01CW

Fig 1: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

1. Slide suspension (07) as far as the end stop on the threaded bolts.
2. Align suspension (07) horizontal and adjust dimensions (see next picture) at the supports (07r, 07s), see following table.

The suspension (07) enables the vehicle center to be displayed with the check point (K).

Shown on model 204.0 without 4MATIC

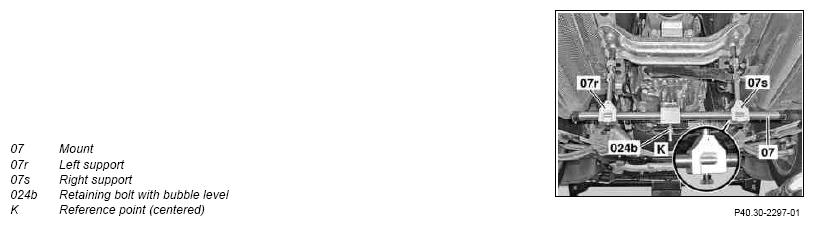

Fig 2: Identifying Mount, Supports And Retaining Bolts (Shown On Model 204.0)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Telescopic Measuring Rod And Tip, Supports, Threaded Stud And Dimensions Of Supports (Shown On Model 204.0)

Courtesy of MERCEDES-BENZ USA
