TIREFIT puncture sealing compound - check expiration date - AP40.10-P-4054CW

MODEL 204 except CODE (690) Emergency wheel except CODE (669) Spare tire on steel rim except CODE (R66) Run-flat tires

Shows model 204.0

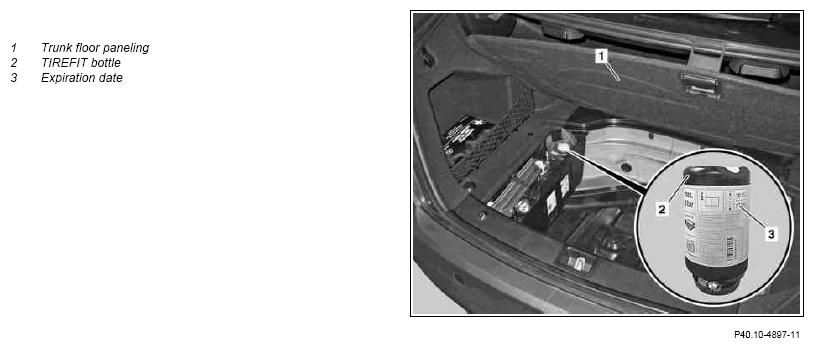

Fig 1: Identifying Trunk Floor Paneling, Tirefit Bottle And Expiration Date

Courtesy of MERCEDES-BENZ USA

Shows model 204.9

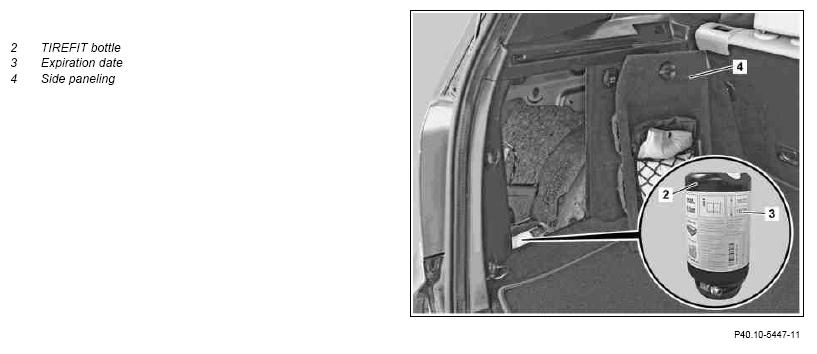

Fig 2: Identifying Side Paneling, Tirefit Bottle And Expiration Date

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Open luggage compartment lid	Model 204.0/3
1.2	Open liftgate	Model 204.2/9
2.1	Lift trim (1) and hook in gripping hooks at sealing fold	Model 204.0/3
2.2	Lift load compartment floor	Model 204.2
2.3	Unlock and remove left side paneling (4)	Model 204.9
	Checking
3	Remove TIREFIT bottle (2) from stowage box/tray and check expiration date (3) of TIREFIT tire sealant	When the expiration date (3) is reached, the TIREFIT bottle (2) must be replaced. Dispose of used or obsolete TI REFIT tire sealant properly.
	TIREFIT tire sealant		AH40.10-P-0001-01A
4	Install in the reverse order
