Tire pressure loss warning (RDW), location components - GF40.15-P-0002-01CE

REFER TO BASIC KNOWLEDGE

IMPORTANT The electronic stability program control unit (N30/4) will be used as of 1.3.2011 or 1.6.2011 in 2 versions:

Up to 28.2.2011 or 31.5.2011 only the ESP control unit will be used in the basic version.

Shown on model 204.0 up to 28.2.2011

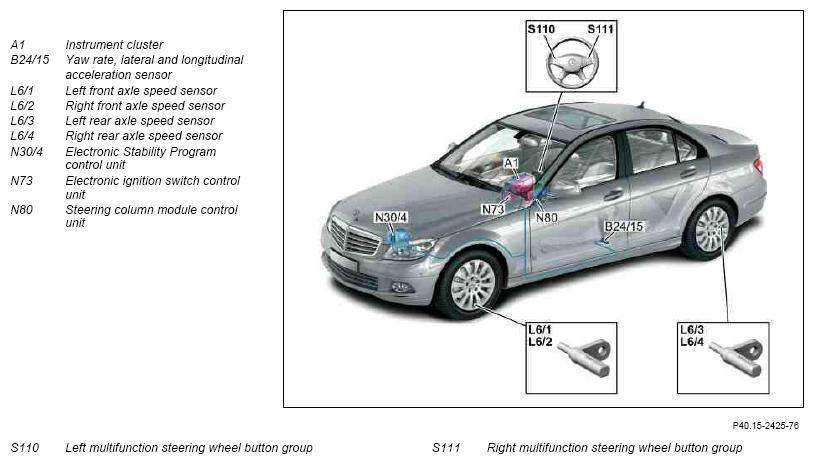

Fig 1: Identifying Tire Pressure Loss Warning Components Location (Shown On Model 204.0)
G07532900Courtesy of MERCEDES-BENZ USA
