Component description for tire pressure monitor control unit - GF40.15-P-5124CEA
MODEL 204.0/9 with CODE (475) Tire pressure monitor (premium) as of model year 2010/modification year 09, Schrader company
MODEL 204.3 with CODE (475) Tire pressure monitor (premium) Schrader company

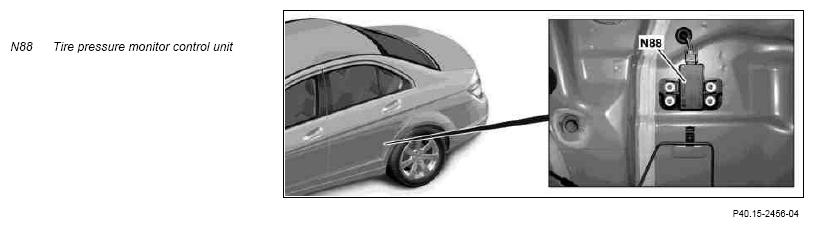

Shown on model 204.0 up to 28.2.2011
Location
The tire pressure monitor control unit is on the underfloor above the rear axle.
Task
The tire pressure monitoring system control unit has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors and signals
The input factors are read in via the following connections:
- Two-way radio
- Chassis CAN (CAN E)
Two-way radio
The following sensors are read in via radio:
- Left front tire pressure sensor (A69/1)
- Right front tire pressure sensor (A69/2)
- Left rear tire pressure sensor (A69/3)
- Right rear tire pressure sensor (A69/4)
Chassis CAN
The following signals (from the IC (A1)) are read in over the chassis CAN:
- Vehicle speed signal
- Outside temperature
- kilometer reading
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Actuation of components
The components are actuated via the following lines:
- Chassis CAN
Chassis CAN
The following components are actuated via the chassis CAN:
- Instrument cluster:
- Menu displays and warning messages
Design
The central antenna is integrated in the tire pressure monitor control unit.
| Wiring diagram for tire pressure monitor control unit | PE40.15-P-2101-97FAA |
