Remove/install supporting joint on wheel carrier - AR35.20-P-0116-01CW

MODEL 204, 207, 212, 218, 231

Fig 1: Identifying Extraction And Insertion Tool (202 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Insertion Tool (204 589 02 43 00)

Courtesy of MERCEDES-BENZ USA

Removing

1. Pull supporting joint (7a) using extraction and insertion tool (01) out of wheel carrier (7).
2. Remove extraction and insertion tool (01) with supporting joint (7a).

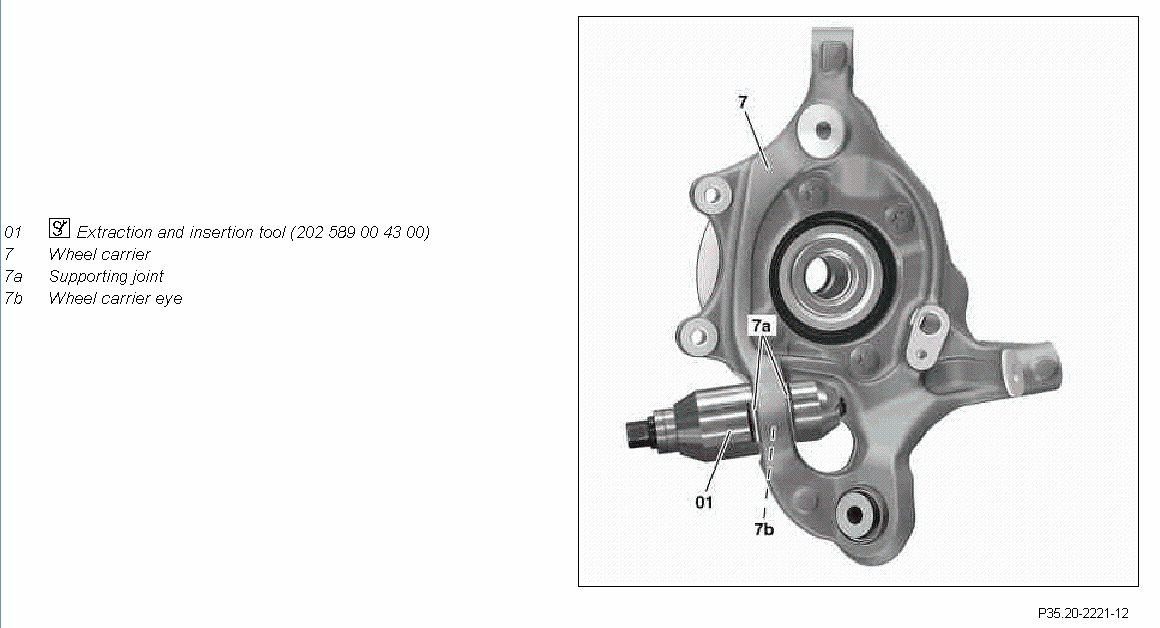

   Fig 3: Identifying Wheel Carrier, Supporting Joint And Wheel Carrier Eye

   Courtesy of MERCEDES-BENZ USA

Install

3. Attach insertion tool (02) with supporting ball joint (7a) to wheel carrier (7).

   Coat lubricant paste onto rubber boot of supporting ball joint (7a), then slide on thrust piece of insertion tool (02) with a rotary movement.

   NOTE: Position rubber boot of supporting ball joint (7a) fully in thrust piece, otherwise the rubber boot may be damaged during assembly.
4. Install supporting joint (7a) using insertion tool (02) in direction of travel into wheel carrier (7).

   The supporting joint (7a) is correctly pulled in when it is seated in the center of the wheel carrier eye (7b).

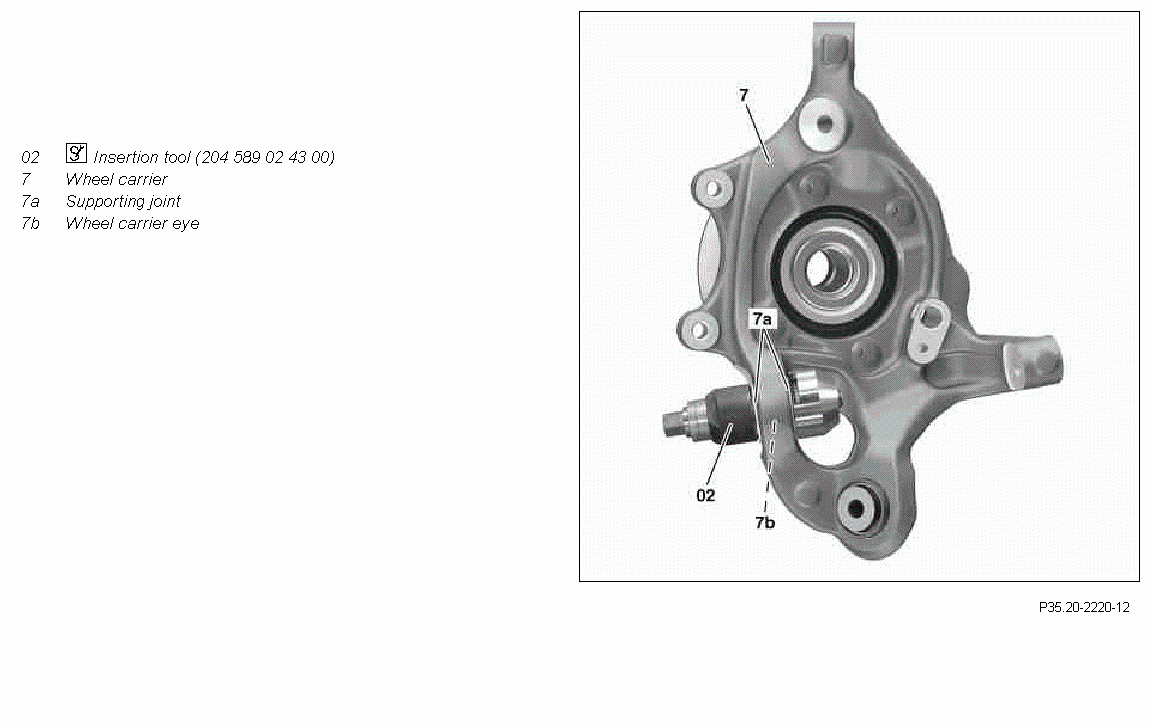

   Fig 4: Identifying Install Of Supporting Joint Using Insertion Tool

   Courtesy of MERCEDES-BENZ USA
