Remove/install rear rubber mount of rear axle center assembly suspension - AR35.10-P-0050-02CW

MODEL 166, 204, 207, 212, 218

Fig 1: Identifying Extraction And Insertion Tool (221 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hollow Piston Cylinder (001 589 51 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Extraction And Insertion Tool (204 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

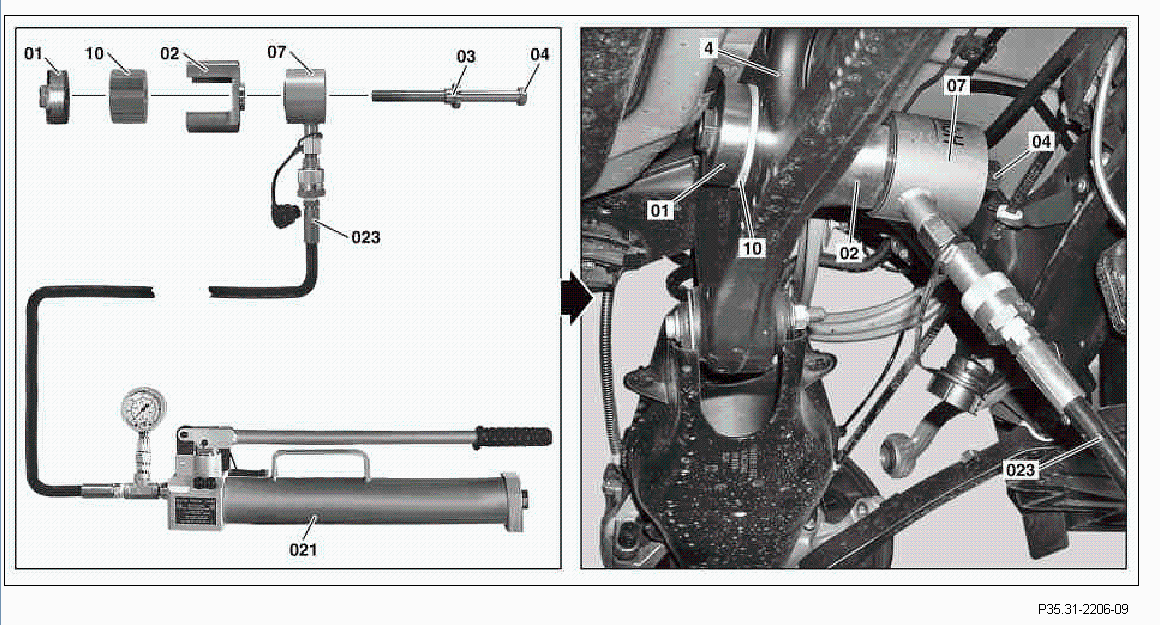

Fig 6: Identifying Rear Rubber Mount Of Rear Axle Center Assembly Components

Courtesy of MERCEDES-BENZ USA

01 Thrust piece (204 589 01 43 01), 02 Counterholder (221 589 01 43 02), 03 Thrust piece (204 589 01 43 03), 04 Spindle (204 589 01 43 04), 07 Hollow-piston cylinder (001 589 51 33 00), 021 Hand pump (652 589 00 33 21), 023 Hydraulic hose (652 589 00 33 23), 4 Rear axle carrier, 10 rubber bushing.

Removing

1. Mount  hollow piston cylinder (07) using hydraulic hose (023) to hand pump (021).
2. Attach spindle (04), thrust piece (03), hollow piston cylinder (07), counterholder (02) and thrust piece (01) to rear axle carrier (4) and rubber mount (10).
3. Press out rear rubber mounts (10) from rear axle carrier (4).

   When turning the spindle (04) into the thrust piece (01), make sure that the spare tire well is not damaged.

   If the hollow piston cylinder (07) has reached its max. stroke, release pressure at the hand pump (021), turn the spindle (04) further into the thrust piece (01) and repeat the pressing procedure.

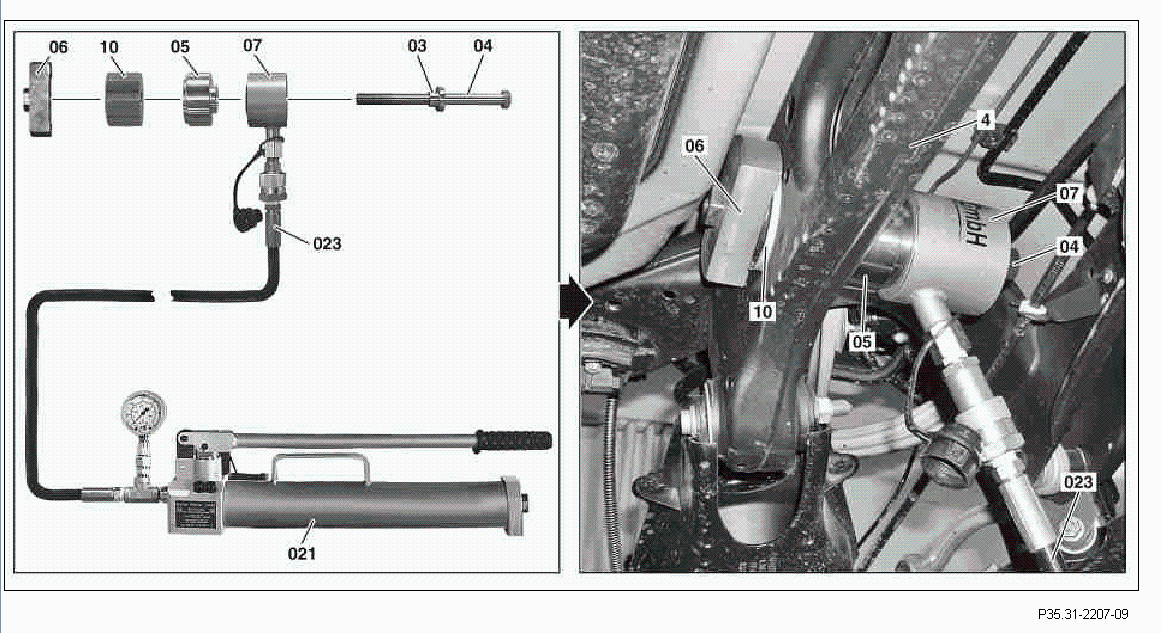

   Fig 7: Identifying Rear Rubber Mount Of Rear Axle Center Assembly Remove/Install Components

   Courtesy of MERCEDES-BENZ USA

   03 Thrust piece (204 589 01 43 03)

   04 Spindle (204 589 01 43 04)

   05 Thrust piece (221 589 01 43 05)

   06 End stop (204 589 01 43 06)

   07 Hollow-piston cylinder (001 589 51 33 00)

   021 Hand pump (652 589 00 33 21)

   023 Hydraulic hose (652 589 00 33 23)

   4 Rear axle carrier

   10 Rubber bushing

Install

4. Attach spindle (04), thrust piece (03), hollow piston cylinder (07), thrust piece (05), rubber mount (10) and stop (06) to rear axle carrier (4).
5. Press rubber mount (10) into rear axle carrier (4).

   When turning the spindle (04) into the stop (06), make sure that the spare tire well is not damaged.

   If the hollow piston cylinder (07) has reached its max. stroke, release pressure at the hand pump (021), turn the spindle (04) further into the stop (06) and repeat the pressing procedure.

   The shape of the stop (06) determines the end position of the rubber mount (10) in the rear axle carrier (4).
