Remove/install oil cooler of rear axle center assembly - AR35.31-P-0590CBS
MODEL 204.3 with CODE P98 (Black Series)
Switch off ignition. Risk of death caused by vehicle slipping or toppling off of the lifting platform. Lift vehicle on vehicle lift. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. See AS00.00-Z-0010-01A

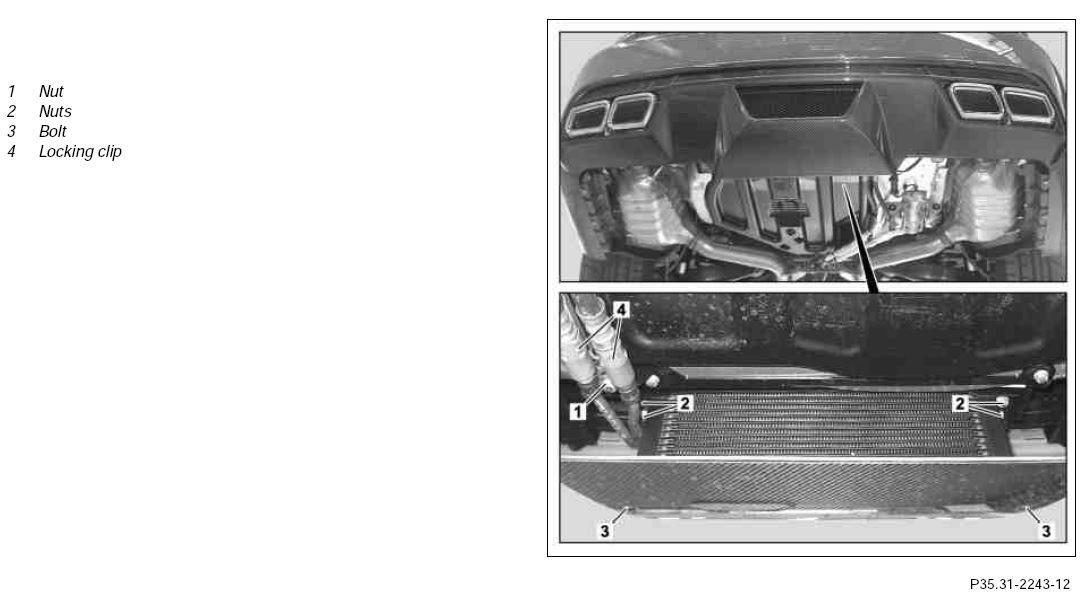

Remove nut (1).
Remove locking clip (4) and disconnect lines. Installation: Replace the locking clips and seal rings on the oil lines. Clean the surrounding area beforehand and seal the connections immediately using stop plugs in order to prevent dirt from entering. Record plug.
Remove nuts (2).
Unscrew bolts (3) and remove oil cooler.
Install in the reverse order.
