Pull rear axle shaft flange into angular contact ball bearing - AR35.20-P-0130-07SX

MODEL 172, 204, 207, 212, 216, 218, 221, 222, 231

Fig 1: Identifying Insertion Tool (211 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

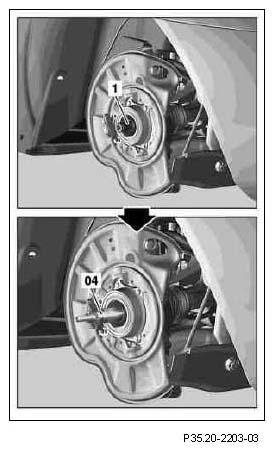

1. Screw insertion tool (04) all the way onto rear axle shaft (1).
   Fig 3: Identifying Insertion Tool And Rear Axle Shaft

   Courtesy of MERCEDES-BENZ USA
2. Slide rear axle shaft flange (2) onto angular contact ball bearing (3).
   Fig 4: Identifying Rear Axle Shaft Flange

   Courtesy of MERCEDES-BENZ USA

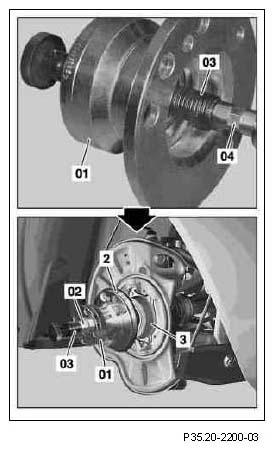

3. Position the extraction and insertion tool (01) on the rear axle shaft flange (2), in the process screwing the spindle (03) onto the insertion tool (04).
4. Pull rear axle shaft flange (2) into angular contact ball bearing (3) until rear axle shaft flange (2) rests against rear axle shaft (1). To do so, turn nut (02) and counterhold spindle (03).
   NOTE: Pull in the rear axle shaft flange (2) only until it rests against the rear axle shaft (1). The teeth must not be positioned opposite each other. The insertion tool (04) will other wise be damaged.
5. Loosen nut (02) and turn rear axle shaft flange (2) against rear axle shaft (1) until teeth mesh in rear axle shaft (1).
   NOTE: The teeth of the rear axle flange (2) and rear axle shaft (1) must mesh.

   The rear axle shaft flange (2) and rear axle shaft (1) will otherwise be damaged when the rear axle shaft flange (2) is pulled in.

6. Pull rear axle shaft flange (2) all the way into angular contact ball bearing (3).
   Fig 5: Identifying Extraction And Insertion Tool On Rear Axle Shaft Flange

   Courtesy of MERCEDES-BENZ USA
