Rear axle - oil change - AP35.00-P-3501CMG

MODEL 204.077/277, 212.074/077/274/277, 218.374 with CODE (030) AMG Performance Package

MODEL 204.077/277, 212.077/277, 218.374 with CODE (471) Manual locking differential

Shows model 204

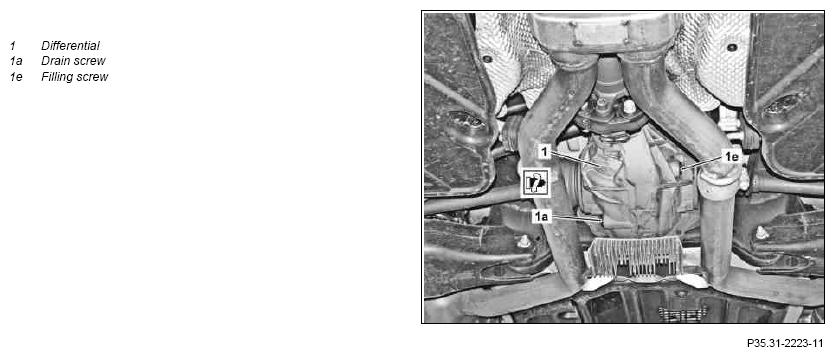

Fig 1: Identifying Differential, Drain Screw And Filler Screw

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
1	Raise vehicle with vehicle lift	The vehicle must be level, otherwise the rear axle differential (1) will not be properly filled. An incorrect oil filling quantity can result in personal injury or damage to property or the environment.
	Clean
2	Clean area surrounding drain screw (1a) and filler plug (1e)	Cleaner from package	*BR00.45-Z-1028-04A
3	Unscrew filler plug (1e)
4	Remove drain screw (1a) and drain oil from rear axle differential (1)
	Clean
5	Clean new drain screw (1a) and threaded hole in rear axle differential (1)	To prevent leakage, always install a new drain screw (1a) to replace the one removed. Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
	Install
6	Insert new drain screw (1a) into rear axle differential (1) and tighten	Coat a droplet of sealant on the third thread from the bottom and mount the new drain screw (1a) immediately.	*BA35.31-P-1003-02H
		Omnifit 100H cleaning compound	*BR00.45-Z-1061-01A
7	Pour oil into the rear axle differential (1)	Fill oil up to lower edge of filler hole. Allow excess oil to flow off. An incorrect oil filling quantity can result in personal injury or damage to property or the environment.
		Filling capacity	*BF35.31-P-1001-01T
	Clean
8	Clean new filler plug (1e) and filler bore in rear axle differential (1)	In order to avoid leaks, the filling screw (1e) must be replaced each time it is removed. Loctite 7063 cleaning spray	*BR00.45-Z-1046-04A
9	Insert and tighten new filler plug (1e) in rear axle differential (1)	Coat a droplet of sealant on the third thread from the bottom and mount the new filler plug (1e) immediately.	*BA35.31-P-1002-02H
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
10	Lower vehicle

DIFFERENTIAL HOUSING

Number	Designation		Model 204	Model 212	Model 218
BA35.31-P-1002-02H	Oil filler screw, differential	Nm	50	50	50
BA35.31-P-1003-02H	Oil drain screw, differential	Nm	50	50	50

DIFFERENTIAL

Number	Designation			Model 204.077/277/377 with code 471, P30	Model 212.074/077/274/277 with code 471, P30
BF35.31-P-1001-01T	Filling capacity	Differential 187 FE, Ø 187 mm	Liters	-	-
			Sheet	-	-
		Differential 200 FE, Ø 200 mm	Liters	-	-
			Sheet	-	-
		Differential 215 FE, Ø 215 mm	Liters	1.2	1.2
			Sheet	BB00.40-P-0235-61 A	BB00.40-P-0235-61 A

DIFFERENTIAL

Number	Designation			Model 218.374 with code 471, P30
BF35.31-P-1001-01T	Filling capacity	Differential 187 FE, Ø 187 mm	Liters	-
			Sheet	-
		Differential 200 FE, Ø 200 mm	Liters	-
			Sheet	-
		Differential 215 FE, Ø 215 mm	Liters	1.2
			Sheet	BB00.40-P-0235-61 A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
BR00.45-Z-1028-04A	Cleaner from package
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
