| A0 |
Explanation of color codes |
40L |
| B22/10 |
Right rear level sensor |
10L |
| B22/7 |
Left rear level sensor |
7L |
| B22/8 |
Left front level sensor |
27L |
| B22/9 |
Right front level sensor |
30L |
| B24/3 |
Left front body lateral acceleration sensor |
23L |
| B24/4 |
Right front body lateral acceleration sensor |
25L |
| B24/5 |
Left rear body lateral acceleration sensor |
5L |
| CAN E |
Chassis CAN |
36K |
| F34 |
Interior fuse box |
3L |
| F34f117 |
Fuse 117 |
1K |
| N51/5 |

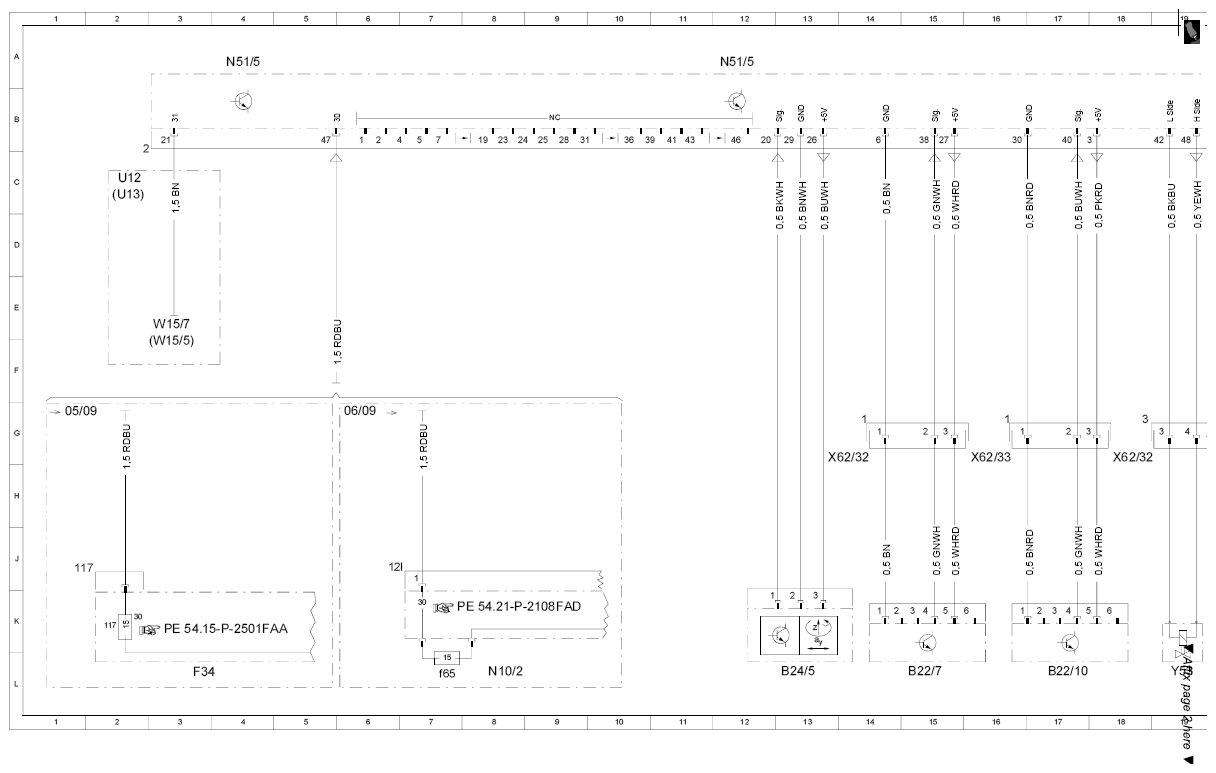

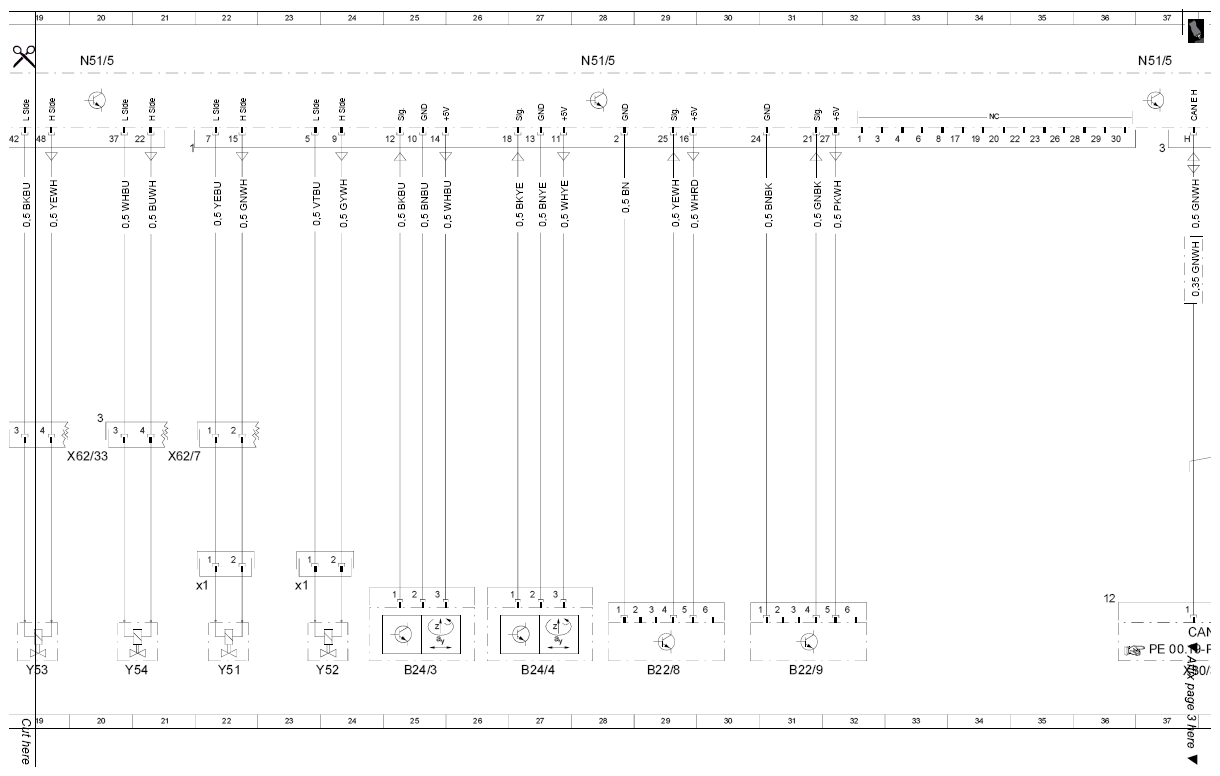

Adaptive damping system control unit |
4A |
| N51/5 |
Adaptive damping system control unit |
12A |
| N51/5 |
Adaptive damping system control unit |
20A |
| N51/5 |
Adaptive damping system control unit |
27A |
| N51/5 |
Adaptive damping system control unit |
36A |
| U12 |
Valid for left-hand steering |
2C |
| U13 |
Valid for right-hand steering |
2C |
| W15/5 |
Left front footwell ground point |
3F |
| W15/7 |
Right front footwell ground point |
3E |
| X30/30 |

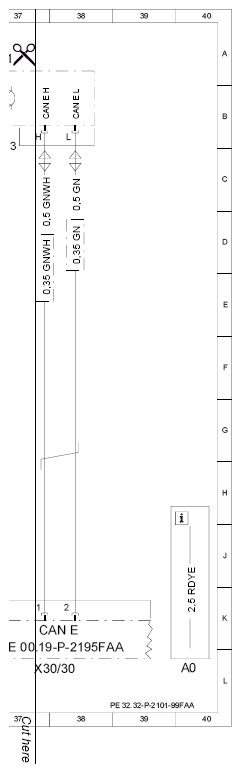

Vehicle floor chassis CAN voltage distributor electrical connector |
36L |
| X62/32 |
Rear axle electrical connector, left distributor |
6H |
| X62/32 |
Rear axle electrical connector, left distributor |
17H |
| X62/33 |
Rear axle electrical connector, right distributor |
8H |
| X62/33 |
Rear axle electrical connector, right distributor |
18H |
| X62/7 |
Front axle electrical connector, left distributor |
20H |
| Y51 |
Left front axle damping valve unit |
21L |
| Y51x1 |
Left front axle damping valve unit electrical connector |
20K |
| Y52 |
Right front axle damping valve unit |
22L |
| Y52x1 |
Right front axle damping valve unit electrical connector |
22K |
| Y53 |
Left rear axle damping valve unit |
17L |
| Y54 |
Right rear axle damping valve unit |
19L |
