Remove/install rear spring (CODE P98 Black Series) - AR32.20-P-0230CBS
| Remove/install | |||
| Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Notes on repair work on suspension components |
Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A AP40.10-P-4050CW |
|
| 1 | Remove rear wheel | - | |

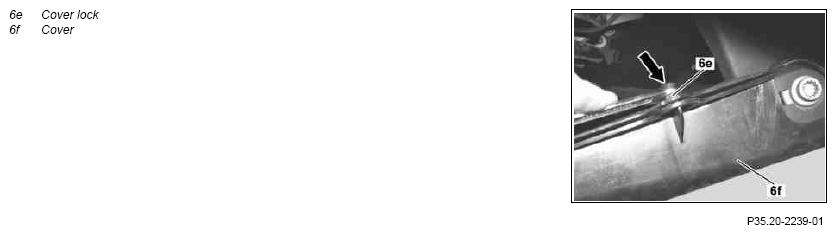

| 2 | Detach cover of spring control arm (2) | ||

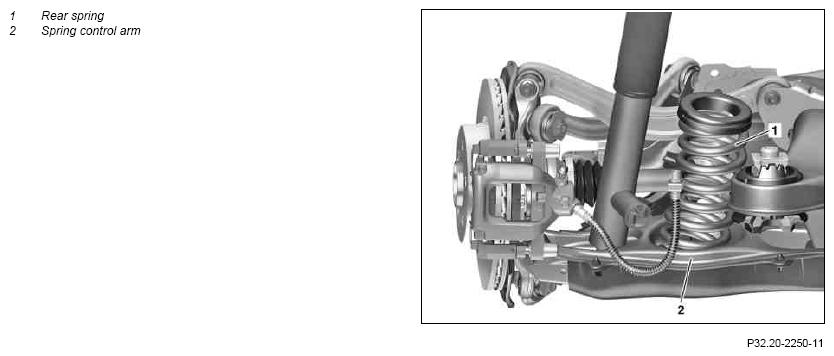

| 3 | Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension Tension rear spring (1) |
Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. | AS00.00-Z-0001-01A AR32.20-P-0200-06CW |
| 211 589 03 63 00 | |||
| 202 589 02 31 00 | |||
| 4 | Remove required components of exhaust system | AR49.10-P-7100CW | |
| 5 | Remove shock absorber from spring control arm (2) | AR32.25-P-0110CW | |
| 6 | Detach link rod for torsion bar from spring control arm (2) | AR32.20-P-0315CW | |
| 7 | Detach spring control arm (2) from rear axle carrier | Support spring control arm to prevent the spring from dropping down. Check height adjustment at top of spring Check rubber boot at top of spring cup for damage. Replace as required. Check zinc shim for damage. Replace as required. |
|
| 8 | Check headlamp adjustment and correct if necessary | AP82.10-P-8260CW | |
| 9 | Install in the reverse order |
