Adjust vehicle level - AR32.25-P-0050-02CBS

MODEL 204 with CODE P98 (Black Series)

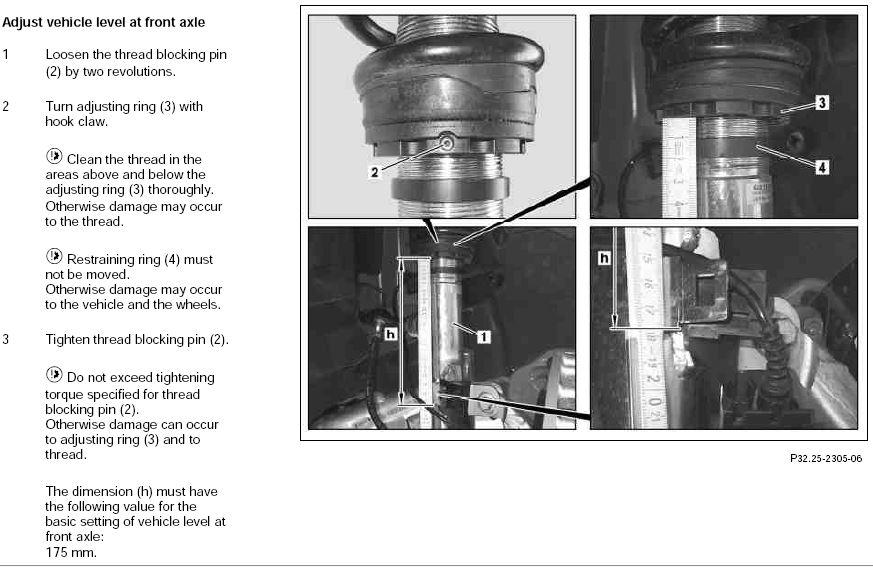

Fig 1: Adjusting Vehicle Level At Front Axle

G00546041

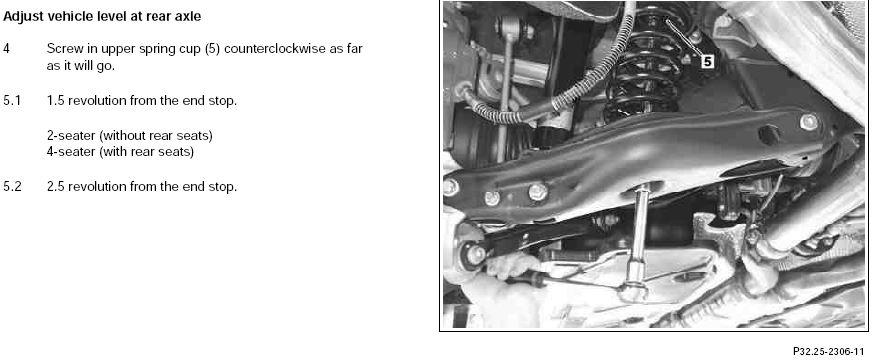

Fig 2: Adjusting Vehicle Level At Rear Axle

G00546042
