Bolt, suspension strut to suspension strut tower modified - BT32.25-P-0002-01CW

MODEL 204

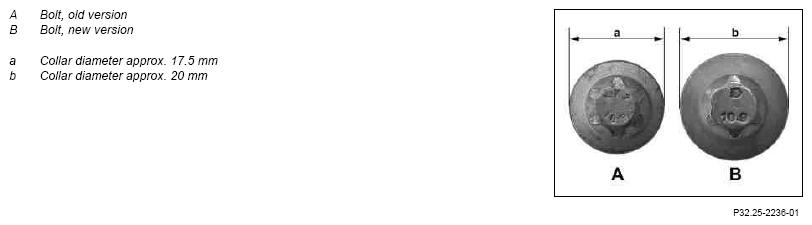

Fig 1: Identifying Bolt (New And Old Version)
G07527651Courtesy of MERCEDES-BENZ USA

The bolt has been modified because of the improvement measures to the bolted connection for the suspension strut to the suspension strut tower.

The new bolt can be recognized by its larger collar diameter.

A new coating on the bolt means that the tightening torque is also lower now.

If the suspension strut has been released on the suspension strut tower, the bolt has to be replaced (only when the old version was installed).

Only the new version is sent out as a replacement part.
