Level sensor, component description - GF32.31-P-5105CW
MODEL 204.0 /2 with CODE (614) Bi-xenon headlamp unit with CODE (622) Intelligent Light System (right-hand traffic) with CODE (483) ADVANCED AGILITY package up to Model Year 8

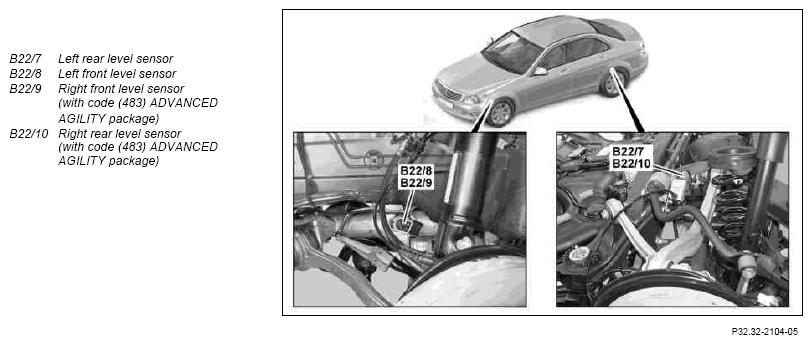

Shown on model 204.0 with code (483)
ADVANCED AGILITY package
Location
The front level sensors are bolted to the respective front wheel well of the body.
The rear level sensors are bolted to the left or right side of the axle housing of the rear axle.
Task
The signals from the level sensors are used to determine the current vehicle level and shock absorber speed.
The spring travel and speed of spring travel change are transmitted to the level sensors through a lever. A corresponding voltage signal is generated via the potentiometer integrated in the level sensor.
On vehicles without code (483) ADVANCED AGILITY package, evaluation is performed by the left xenon light control unit (E1n1). On vehicles with code (483) ADVANCED AGILITY package, evaluation is performed by the adaptive damping system control unit (N51/2).
