Adaptive damping system (ADS), location of components - GF32.32-P-0002-01CW

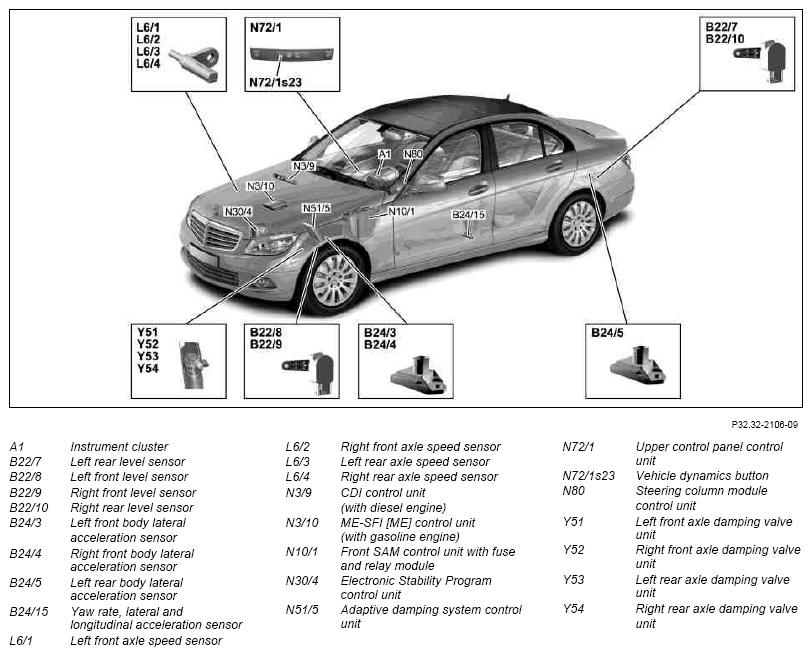

Fig 1: Identifying Adaptive Damping System Components Location

G07527622

Courtesy of MERCEDES-BENZ USA
