Adaptive damping system (ADS), block diagram - GF32.32-P-0002-02CW

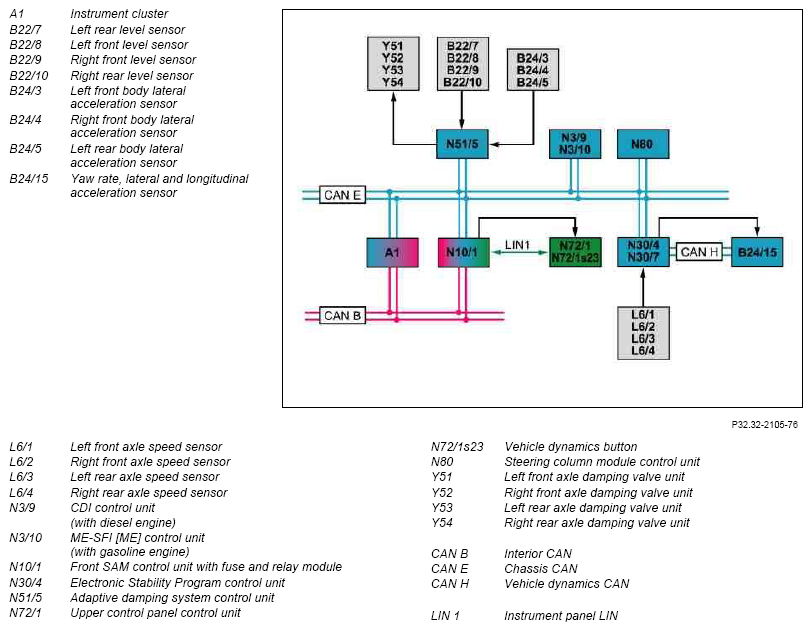

Fig 1: Identifying Adaptive Damping System Block Diagram

G07527624

Courtesy of MERCEDES-BENZ USA
