Attach engine hoist - AR33.10-P-0105CW

MODEL 204, 207

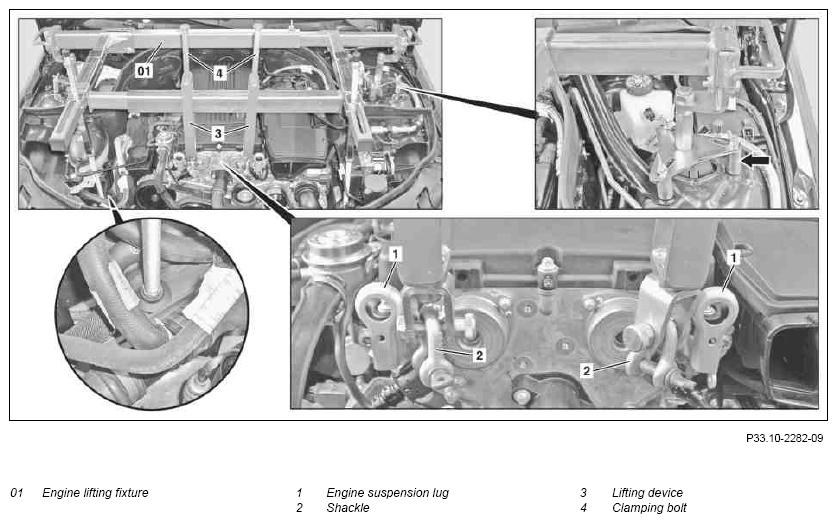

Shown on model 204 with engine 271

Fig 1: Attaching Engine Hoist

Courtesy of MERCEDES-BENZ USA

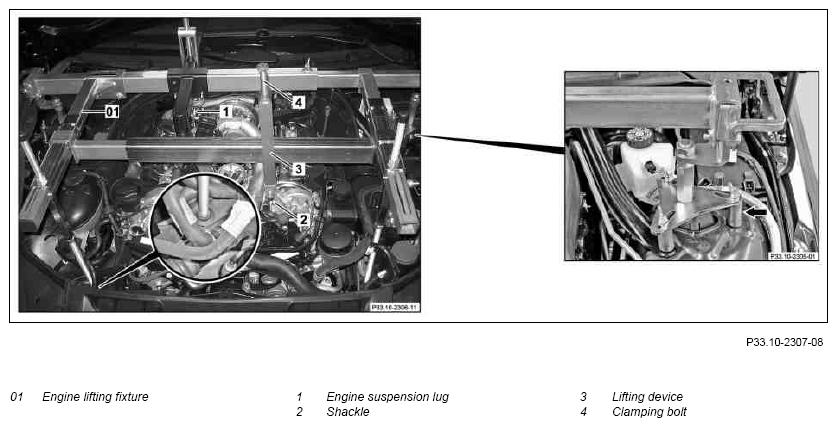

Shown on model 204 with engine 642

Fig 2: Attaching Engine Hoist

Courtesy of MERCEDES-BENZ USA

	Installing, removing
1.1	Remove upper engine cover	Engine 271, 642: Pull off the engine cover upward. Installation engine 642:  Ignition switched off.
		Engine 646.8	AR01.20-P-5014-02A
		Engine 651	AR01.20-P-5014-02CD
1.2	Detach front engine cover	Engines 156, 272, 273, 276
1.3	Remove boot between upper charge air duct and air filter housing and detach charge air duct from cylinder head cover	Engine 278	AR09.41-P-8620ELB
2	Mount preassembled engine lifting device (01) on strut towers and longitudinal member.	When mounting the engine hoist (01), ensure that the surfaces in the area of the suspension strut towers do not have any scratches, cracks and notches. Ensure that in the area of the longitudinal members no hoses and lines are pinched. The support of the engine lifting device (01) must  be mounted so the firmly-seated spacer sleeve (arrow) points outwards. Observe manufacturer's assembly specifications and safety information.
			Fig 3
3	Mount front lifting eye on engine	Engine 278	AR33.10-P-0105-01SX
			Fig 4
			*BA01.30-P-1006-01X
4	Adjust engine lifting device (01) and tighten bolted connection
5	Mount shackle (2) on the engine suspension lug (1)
6	Pretension lifting device (3); to do so tighten the clamping screw (4)
7	Remove in the reverse order

Fig 3: Identifying Engine Lifting Fixture (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Lifting Eye (278 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
