Wiring diagram for steering column module control unit - PE46.10-P-2101-97FAA

MODEL 204.0 /2 /3 /9 control unit N80

Code  : Designation  : Position  :
A45 Fanfare horns and airbag clock spring contact 17D
CANE Chassis CAN 7K
CANE Chassis CAN 10K
N10/1 Front SAM control unit with fuse and relay module 2L
N10/1f13 Fuse 13 2L
N135 Steering wheel electronics 17G
N2/10 Supplemental restraint system control unit 14L
N49 Steering angle sensor 37A
N80 Steering column module control unit 4A
N80 Steering column module control unit 12A
N80 Steering column module control unit 20A
N80 Steering column module control unit 29A
N80 Steering column module control unit 36A
N80 Steering column module control unit 42A
R12/13 Driver airbag squib 1 28L
R12/14 Driver airbag squib 2 30L
S110 Left multifunction steering wheel button group 19L
S110/1 Steering wheel downshift button 27L
S110s1 Scroll forward/back button 18L
S110s3 System selection button 19L
S110s4 "Back" and voice control system OFF button 20L
S110s5 Left fanfare horn system button 20L
S110s6 OK button 21L
S111 Right multifunction steering wheel button group 23L
S111/1 Steering wheel upshift button 26L
S111s1 Buttons + and - for setting specific functions and volume control 22L
S111s3 Accept/terminate phone call button 22L
S111s4 Voice control system ON button 24L
S111s5 Right fanfare horn system button 24L
S111s6 Mute button 24L
S4 Combination switch 33D
S40/4 Cruise control lever 41D
S40/4r1 DISTRONIC control 44D
S40/4s1 Resume from memory switch 39D
S40/4s2 Decelerate and set switch 39D
S40/4s3 Accelerate and set switch 40D
S40/4s4 OFF switch 41D
S40/4s5 Indicator switch 42D
S40/4s6 SPEEDTRONIC switch 43D
S40/4v1 SPEEDTRONIC light emitting diode 43D
S4s1 Turn signal lamps switch 32D
S4s2 Headlamp flasher/high beam switch 32D
S4s3 Low beam switch 32D
S4s4 Windshield washer system switch 33D
S4s5 Wipe switch 34D
S59 Steering column adjustment switch 35D
U12 Valid for left-hand drive vehicles 3E
U13 Valid for right-hand drive vehicles 3E
U2 Valid for all except USA 43A
U504 Valid for DISTRONIC 44A
U57 Valid for model 204.2 5E
U57 Valid for model 204.2 8E
U58 Valid for model 204.0 5E
U58 Valid for model 204.0 8E
U59 Valid for model 204.9 8E
U60 Valid for model 204.3 5E
U873 Valid for steering wheel shift buttons 25H
W15/5 Left front footwell ground point 4G
W15/7 Right front footwell ground point 4G
X30/30 Vehicle floor chassis CAN voltage distributor electrical connector 6L
X30/30 Vehicle floor chassis CAN voltage distributor electrical connector 10L
Z35/7 CAN bus high cockpit bus node 7G
Z35/8 CAN bus low cockpit bus node 6G

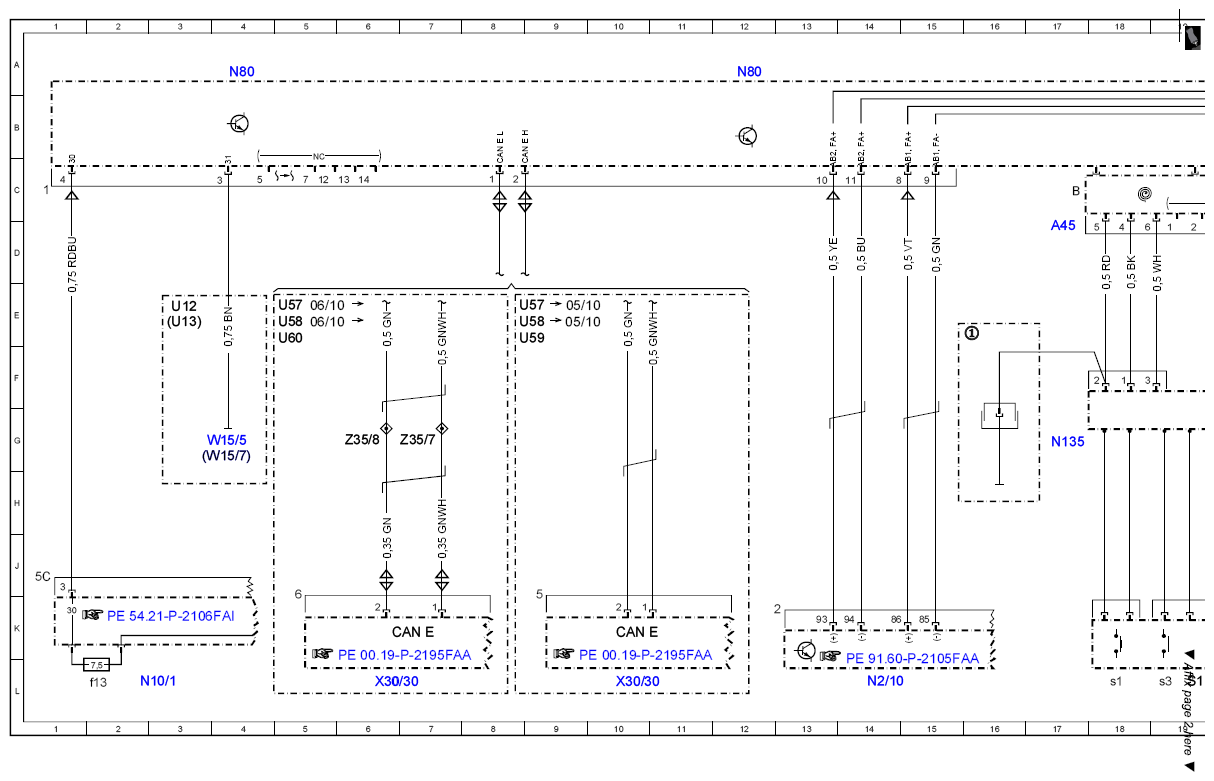

Fig 1: Steering Column Module Control Unit - Wiring Diagram (1 Of 3)
G07527891Courtesy of MERCEDES-BENZ USA

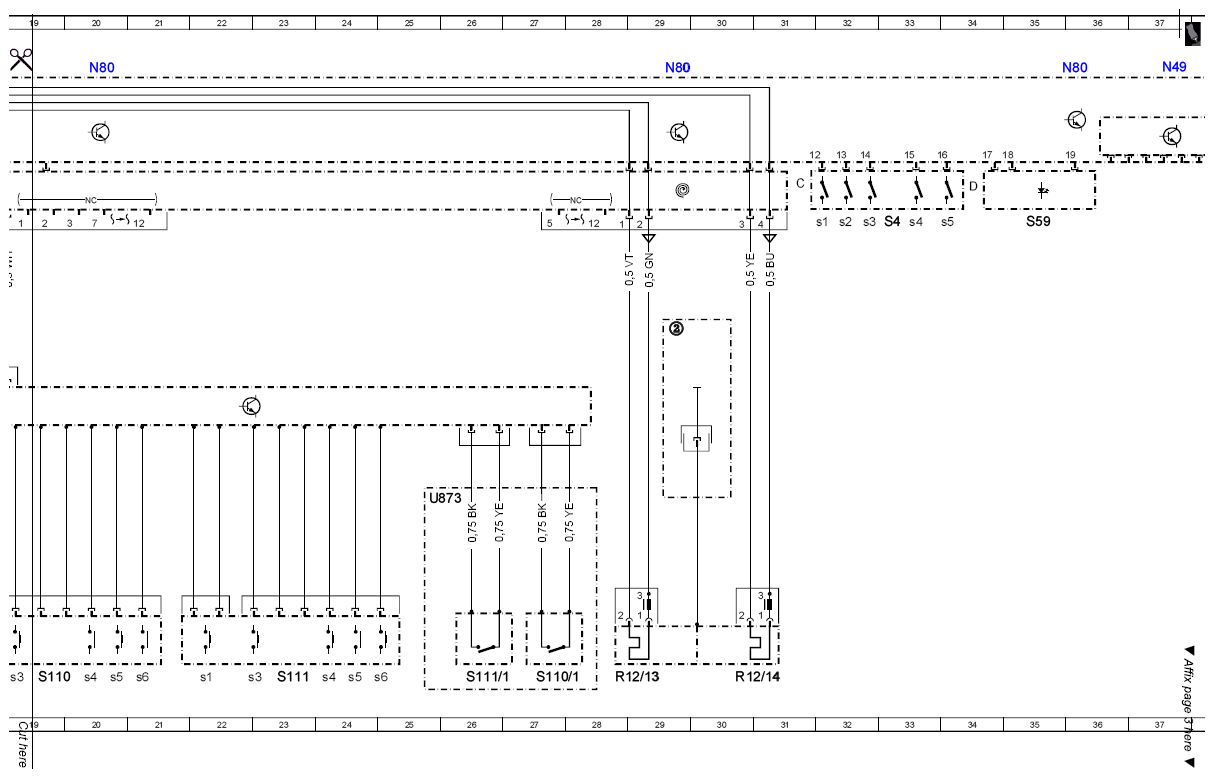

Fig 2: Steering Column Module Control Unit - Wiring Diagram (2 Of 3)
G07527892Courtesy of MERCEDES-BENZ USA

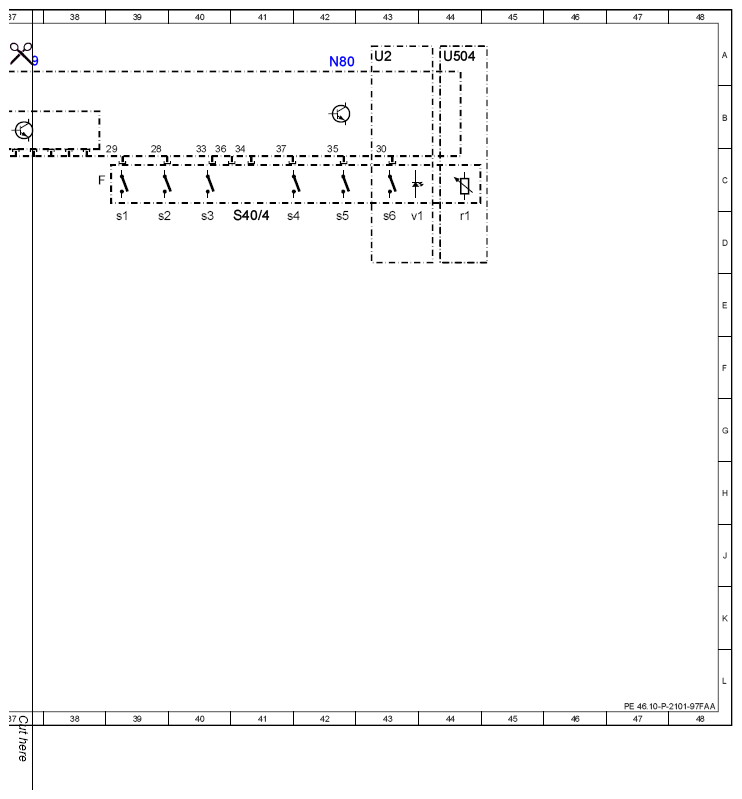

Fig 3: Steering Column Module Control Unit - Wiring Diagram (3 Of 3)
G07527893Courtesy of MERCEDES-BENZ USA
