Turn rack-and-pinion steering to center position and mount steering coupling - AR46.20-P-0600-01CW

MODEL 204, 207, 212, 218

1. Turn rack-and-pinion steering to center position.

   Turn the rack-and-pinion steering until the marking on the dust cap of the input shaft matches the marking on the control valve housing (arrow).

2. Mount steering coupling.

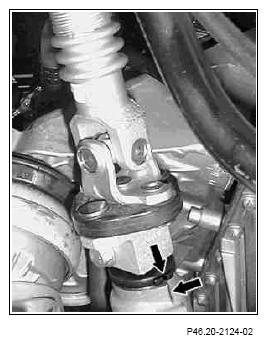

Fig 1: Identifying Marking On The Dust Cap Of The Input Shaft To The Marking On The Control Valve Housing

Courtesy of MERCEDES-BENZ USA
