Push the boot onto the steering gear housing and position - AR46.40-P-0400-02CW
MODEL 164, 171, 172, 203, 204, 207, 209, 211, 212, 218, 219, 251
- Push boot (1) onto steering gear housing (2).
Model 172, 204, 207, 212, 218: Slide on until the recesses (1a) are at the housing (2) of the steering gear.
- Position boot (1).
Model 204, 207 with diaphragm valve (1b):
As shown in the picture the diaphragm valve (1b) must be located in the center of the marking (2m).
Model 164, 171, 203, 209, 251: The diaphragm valve (1b) must point in the direction of travel.
Model 211, 219:
The diaphragm valve (1b) must point opposite to the direction of travel.
Model 172:
The diaphragm valve (1b) on the right boot (1) must point opposite to the direction of travel.

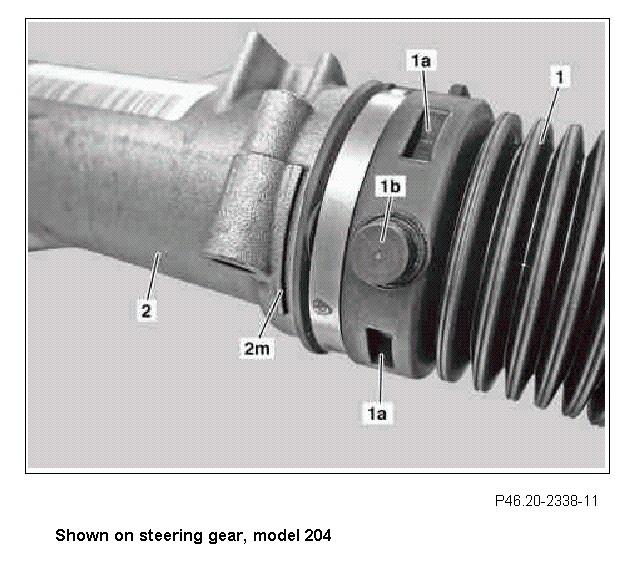

Shown on steering gear, model 204
