Pressing out and attaching track rod joint at steering knuckle - AR46.40-P-0200-02CW

TIE ROD

Number Designation Model 172
BA46.40-P-1001-01E Self-locking nut, tie rod to steering knuckle Stage 1 Nm 50
Stage 2 ∠° 60
TIE ROD

Number Designation Model 204 Model 207 Model 212 Model 218
BA46.40-P-1001-01N Self-locking nut, tie rod to steering knuckle Stage 1 Nm 50 50 50 50
Stage 2 ∠° 60 60 90 90
Fig 1: Identifying Thrust Piece (171 589 00 34 00)
G07521927Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Press (163 589 03 43 00)
G07521928Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Puller (221 589 00 33 00)
G07521929Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Puller (221 589 05 33 00)
G07521930Courtesy of MERCEDES-BENZ USA

IMPORTANT Use the SPECIAL TOOL puller (01) with the special tool number 221 589 05 33 00 for model 204, 207, 212 to pry off the tie rod joint (5) with stainless-steel race.

Use the SPECIAL TOOL puller (01) with the special tool number 221 589 00 33 00 for model 172, 204, 212, 218 to pry off the tie rod joint (5) without stainless-steel race.

To check the variant: Clean the rubber boot and contact surface on the steering knuckle (7) if necessary.

Pushing off

  1. Unscrew self-locking nut from tie rod joint (5).
  2. Mount SPECIAL TOOL puller (01) with SPECIAL TOOL thrust piece (02) and SPECIAL TOOL press (03) on tie rod joint (5) and steering knuckle (7).

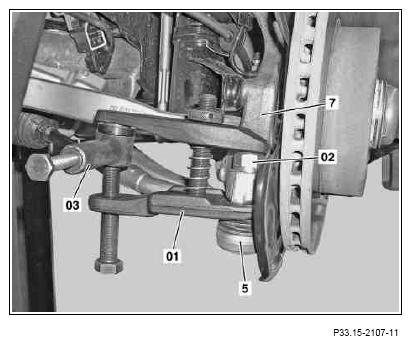

    Fig 5: Pushing Tie Rod Joint Off Steering Knuckle Using Puller
    G07521931Courtesy of MERCEDES-BENZ USA
  3. Push tie rod joint (5) off steering knuckle (7) using SPECIAL TOOL puller (01), SPECIAL TOOL thrust piece (02) and SPECIAL TOOL press (03).

    NOTES Turn the steering and make sure that the SPECIAL TOOL puller (01) is seated correctly on the tie rod joint (5) and on the SPECIAL TOOL thrust piece (02). If not seated correctly, the race of the tie rod will be damaged, resulting in irreparable damage to the tie rod.

  4. Remove SPECIAL TOOL puller (01), SPECIAL TOOL thrust piece (02) and SPECIAL TOOL press (03) from tie rod joint (5).

    Attaching

  5. Clean cone and thread on tie rod joint (5) and mount on steering knuckle (7).

    NOTES There must not be any grease or oil on the cone, thread or mount. The tie rod joint (5) can otherwise work loose.

  6. Attach self-locking nut to tie rod joint (5).

    IMPORTANT If necessary, counterhold the tie rod joint (5) using an Allen wrench. Observe specified tightening torque.
