Fasten boots with clamps - AR46.40-P-7200-01EW

MODEL 172, 204, 207, 212, 218

1. Position clamp (1).

   Model 204, 207, 212, 218:

   The clamp (1) for the boot (3) must be positioned as shown in the picture. Otherwise there will not be enough clearance with the front axle carrier when the rack-and-pinion steering is at an extreme angle (5).

2. Position clamp (2).

   The clamps (2) for the boot (3) must be positioned as shown in the picture. Otherwise, the locking fins (4) of the clamp (2) will be pushed against the boot (3) in the case of extreme steering angles.

3. Secure clamps (1, 2).
4. Check that clamps (1, 2) are fitted securely and at correct position.

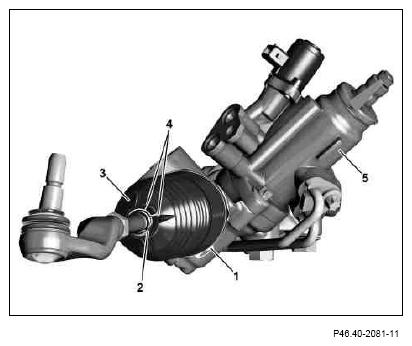

Fig 1: Identifying Boot, Clamps And Locking Fins

Courtesy of MERCEDES-BENZ USA
