Check and correct power steering fluid level - AP46.00-P-4611CW

MODEL 204 with ENGINE 156, 271, 272, 276, 642, 646, 651

Engine 156

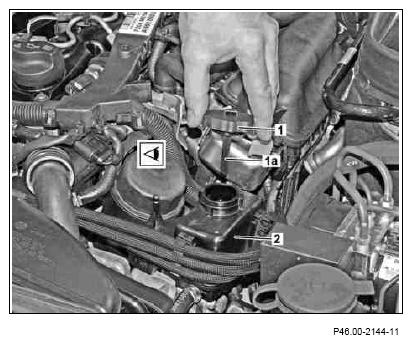

Fig 1: Checking Power Steering Fluid Level (Engine 156)

Courtesy of MERCEDES-BENZ USA

Engine 271

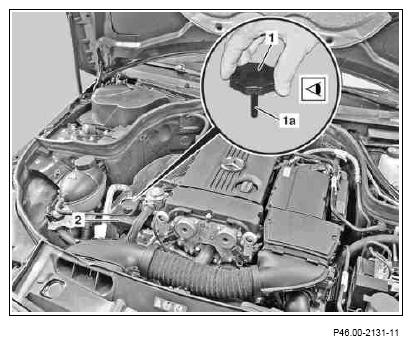

Fig 2: Checking Power Steering Fluid Level (Engine 271)

Courtesy of MERCEDES-BENZ USA

Engine 272

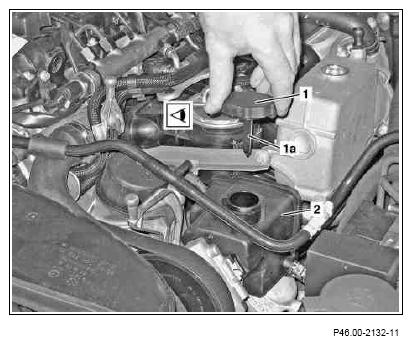

Fig 3: Checking Power Steering Fluid Level (Engine 272)

Courtesy of MERCEDES-BENZ USA

Engine 642

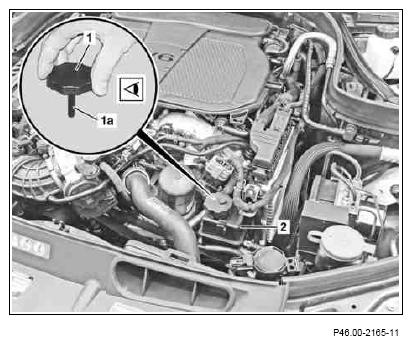

Fig 4: Checking Power Steering Fluid Level (Engine 642)

Courtesy of MERCEDES-BENZ USA

Engine 646

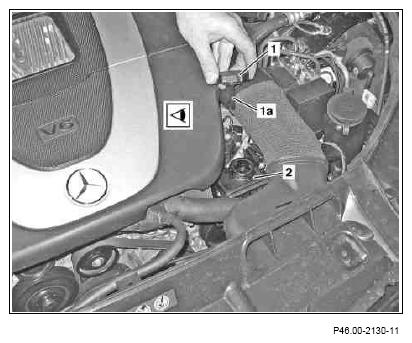

Fig 5: Checking Power Steering Fluid Level (Engine 646)

Courtesy of MERCEDES-BENZ USA

Engine 651 without electrohydraulic power steering (EHPS)

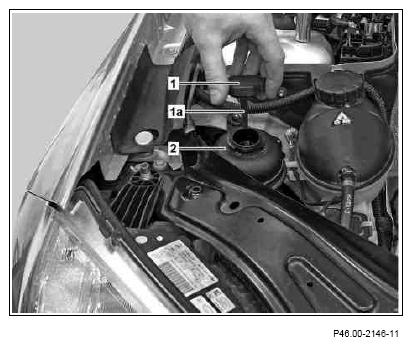

Fig 6: Checking Power Steering Fluid Level (Engine 651 Without EHPS)

Courtesy of MERCEDES-BENZ USA

Engine 651 with EHPS

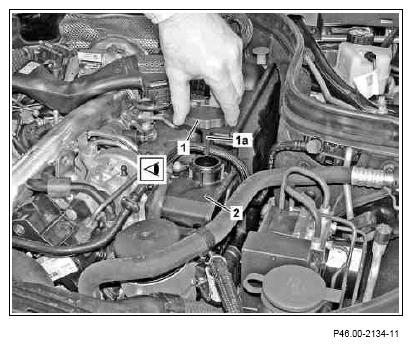

Fig 7: Checking Power Steering Fluid Level (Engine 651 With EHPS)

Courtesy of MERCEDES-BENZ USA

Engine 276

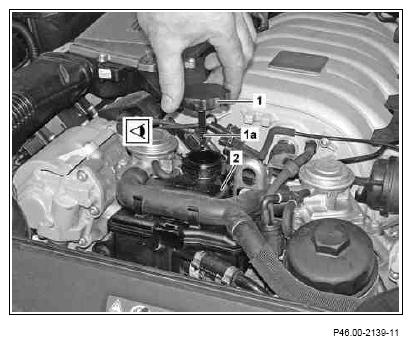

Fig 8: Checking Power Steering Fluid Level (Engine 276)

Courtesy of MERCEDES-BENZ USA

	Removing
Danger!	Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
		Before opening the hydraulic circuit of the power steering, thoroughly clean the surrounding area of the separation point. Even minute particles of dirt, introduced into the hydraulic components, can result in malfunctions and damage to the power steering.
1	Switch off ignition
2.1	Remove upper engine cover	Engine 642 In order to avoid damage, put upper engine cover down on padded base.
2.2	Remove front engine cover	Engine 156, 276 In order to prevent damage, lift the front engine cover straight up without tilting it and place it down on a padded base.
2.3	Remove cylinder head cover trim	Engine 646, 651 without EHPS
		Engine 646	AR01.20-P-5014-02A
		Engine 651	AR01.20-P-5014-02CD
3	Remove cap (1) of power steering expansion reservoir (2)	Press the cap (1) downwards and turn counterclockwise through 90°.
4	Wipe off oil dipstick (1a) with a fluff-free rag and seal the expansion reservoir (2) with cap (1)	EC Press the cap (1) downwards and turn clockwise through 90°.
	Checking
5	Remove the cap (1) again and read off the oil level on the oil dipstick (1a), correct the oil level if necessary	Observe oil temperature and markings on oil dipstick (1a). The oil level must be located on the maximum marking corresponding to the oil temperature.
		In order to avoid measurement errors, hold the oil dipstick (1a) upright.
		If the fluid level is too low, determine cause and eliminate subject to a separate order.
		MB steering gear oil	*BF46.20-P-1001-01E
	Install
6	Seal expansion reservoir (2) with cap (1)
7.1	Install upper engine cover	Engine 642: Ignition switched off.
7.2	Fit front engine cover	Engine 156, 276
7.3	Install trim panel of cylinder head cover	Engine 646, 651 without EHPS
		Engine 646	AR01.20-P-5014-02A
		Engine 651	AR01.20-P-5014-02CD

STEERING GEAR

Number	Designation			Model 204
BF46.20-P-1001-01E	Power steering	Filling capacity	Liters	=0.8
		MB steering gear oil	Sheet	BB00.40-P-0345-00A
