Remove/install airbag unit on steering wheel (MODEL 204.0 /2 as of model year 2012 /YoM 11; MODEL 172.4, 204.3, 218) - AR91.60-P-0660EL
MODEL 204.0 /2 as of model year 2012 /YoM 11
MODEL 172.4, 204.3, 218

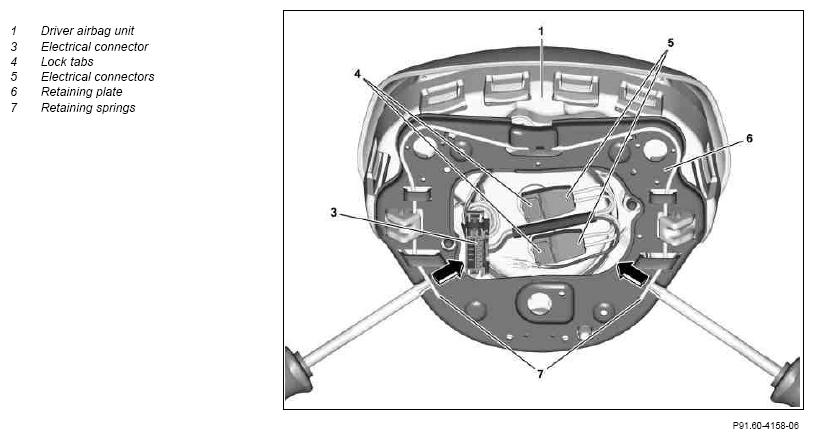

Illustrated on model 218

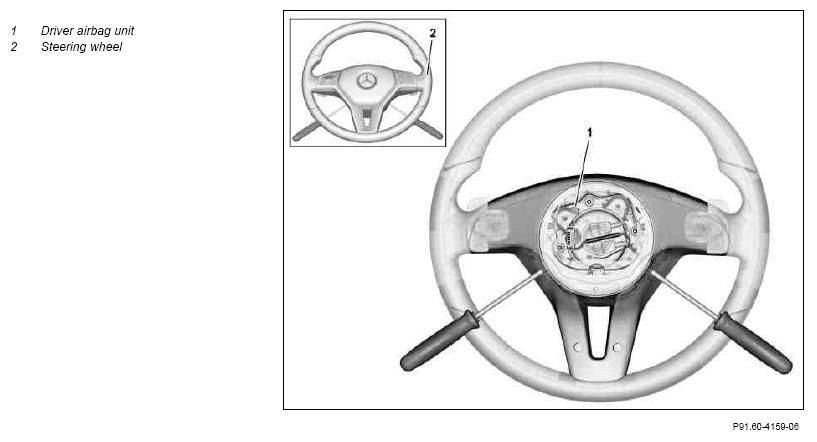

Illustrated on model 218
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units | AH91.00-P-0002-01M | ||
| Assessment of airbag and emergency tensioning retractor units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Place steering column in the central height position | ||
| 2 | Disconnect ground line for on-board electrical system battery (G1) | Model 172 | AR54.10-P-0003W |
| Model 204 | AR54.10-P-0003CW | ||
| Model 218 | AR54.10-P-0003EW | ||
| 3 | Insert Torx screwdriver into openings on steering wheel (2) and press retaining springs (7) inward | Torx screwdriver T20 |
|
| 4 | Remove driver airbag unit (1) far enough from steering wheel (2) until electrical connector (3) is accessible | ||
| 5 | Disconnect electrical connector (3) at steering column tube module | ||
| 6 | Disconnect driver airbag unit (1) from steering wheel (2) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 7 | Install in the reverse order | ||
| 8 | Connect Star Diagnosis and check supplemental restraint system (SRS) | When replacing driver airbag unit (1). | AD00.00-P-2000-04A |
