Front passenger seat control unit, component description - GF91.29-P-5241CW

MODEL 204.0 /2 with CODE (242) Electrically adjustable front passenger seat with memory up to Model Year 8

Illustrated on model 204.0

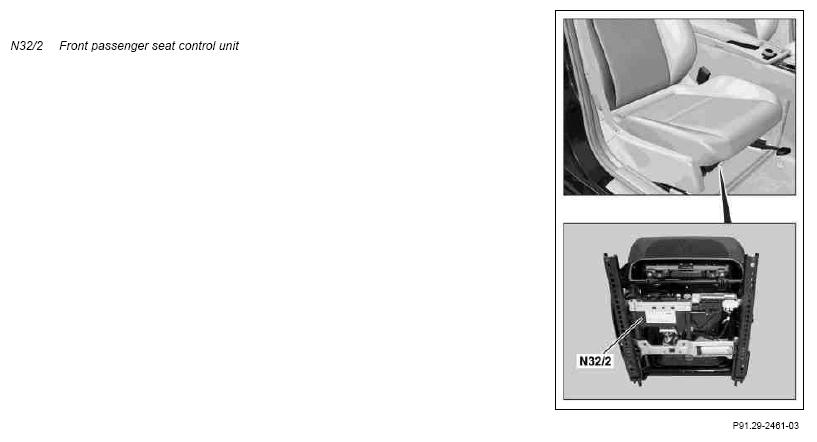

Fig 1: Locating Front Passenger Seat Control Unit

Courtesy of MERCEDES-BENZ USA

Location

The front passenger seat control unit is located on the front passenger seat frame.

Tasks

Actuation of seat adjustment according to requests via interior CAN from right front door control unit (N69/2).
Storage of memory settings for front passenger seat.

Discrete outputs

Front passenger seat adjustment motor for seat fore/aft adjustment (M28/1)
Front passenger seat height adjustment motor (M28/2)
Front passenger seat inclination adjustment motor (M28/3)
Front passenger seat head restraint adjustment motor (M28/4)
Front passenger seat backrest inclination adjustment motor (M28/5)

Discrete inputs

CAN signals

The front passenger seat control unit is an interior CAN subscriber.
