Electric seat adjustment (ESA [ESV]), location of components (with CODE 275) - GF91.29-P-0004-01CWA

MODEL 204.0 /2 with CODE (275) Memory package (driver seat, steering column, mirrors) with CODE (242) Electrically adjustable front passenger seat with memory up to Model Year 8

Illustrated on model 204.0

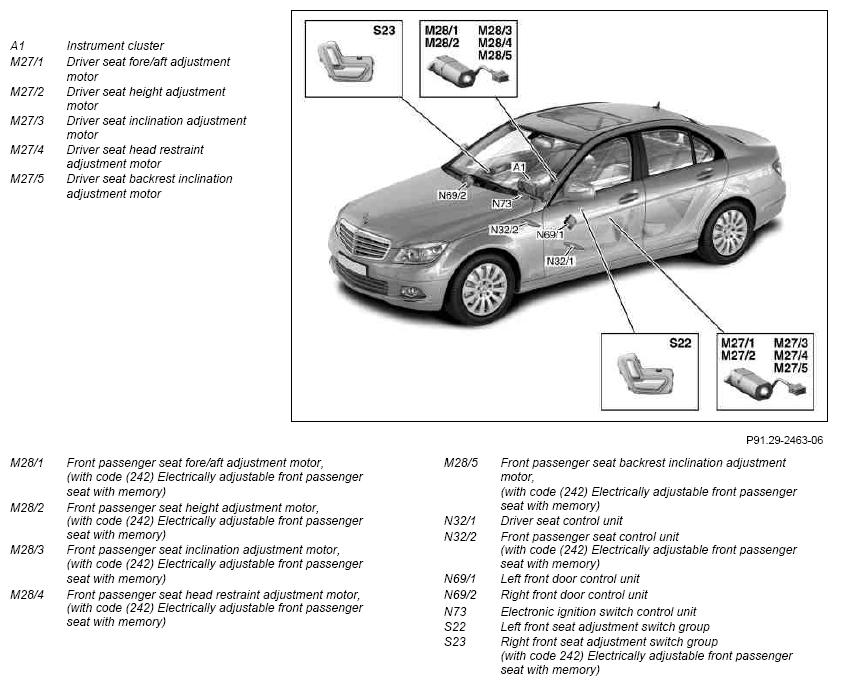

Fig 1: Locating Electric Seat Adjustment Components

Courtesy of MERCEDES-BENZ USA
