Remove/install control and operating unit (MODEL 204.0/2/9 Rear control and operating unit) - AR83.40-P-6350ELH

MODEL 204.0 /2 /9, 212, 218 Rear control and operating unit

Shown on model 204

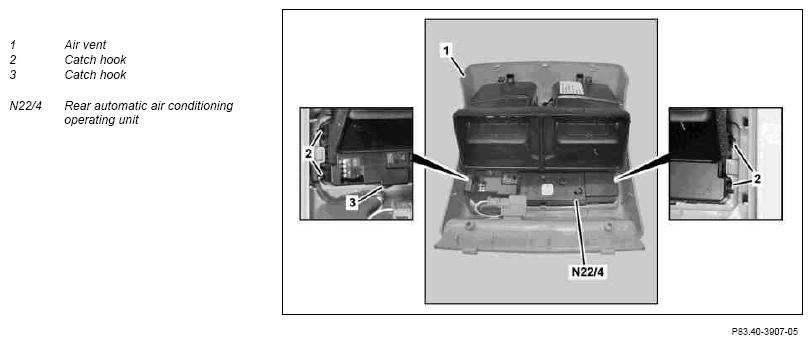

Fig 1: Identifying Rear Automatic Air Conditioning Operating Unit, Air Vent And Catch Hooks

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove rear air nozzle (1)	Model 204, 212	AR83.10-P-4800CW
		Model 218.3	AR83.10-P-4800EL
2	Unclip rear automatic air conditioning operating unit (N22/4) from catch hooks (2) and detach at air vent (1)
3	Unclip rear automatic air conditioning operating unit (N22/4) from catch hooks (3) and remove from air vent (1)
4	Install in the reverse order
