Outside temperature sensor, component description - GF83.57-P-4006CW
MODEL 204.0 /2 up to Model Year 8
Illustrated on model 204.0

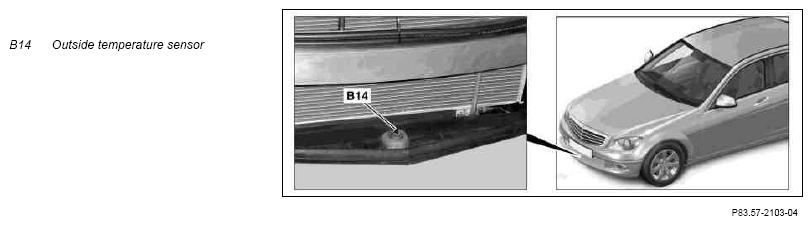

Location
The outside temperature sensor is located in the center behind the front bumper in front of the radiator.
Task
The outside temperature sensor records the outside temperature. The outside temperature sensor is read in by the front SAM control unit with fuse and relay module (N10/1).
