Routing diagram of poly-V belt - AR13.22-P-3902-02SX

Shown on engine 272.965

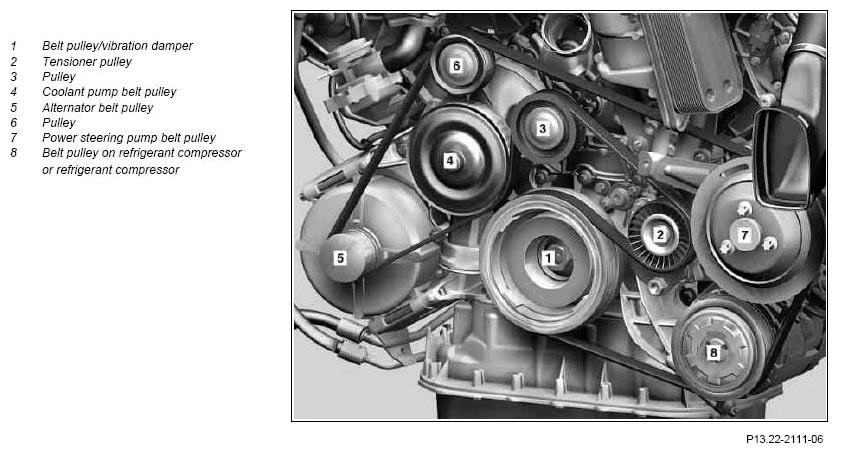

Fig 1: Identifying Routing Diagram Of Poly-V Belt
G07532774Courtesy of MERCEDES-BENZ USA

Engine 272.974

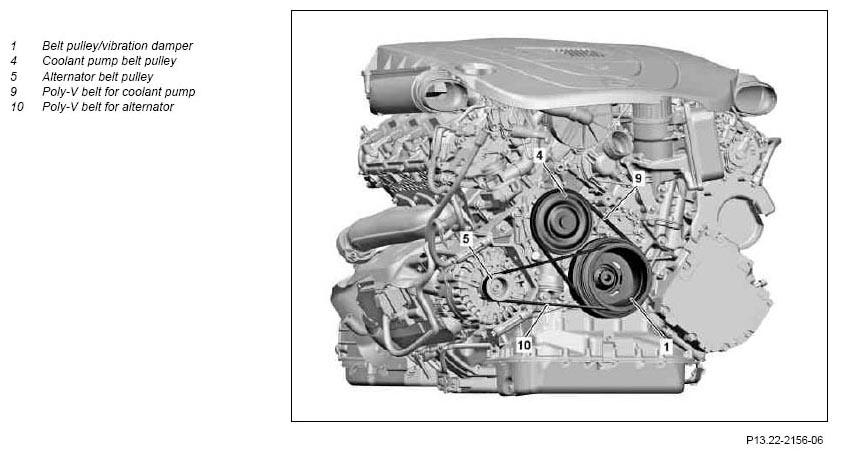

Fig 2: Identifying Routing Diagram Of Poly-V Belt
G07532775Courtesy of MERCEDES-BENZ USA
