Routing diagram of poly V-belt - AR13.22-P-3902-02AMG

Engine 156

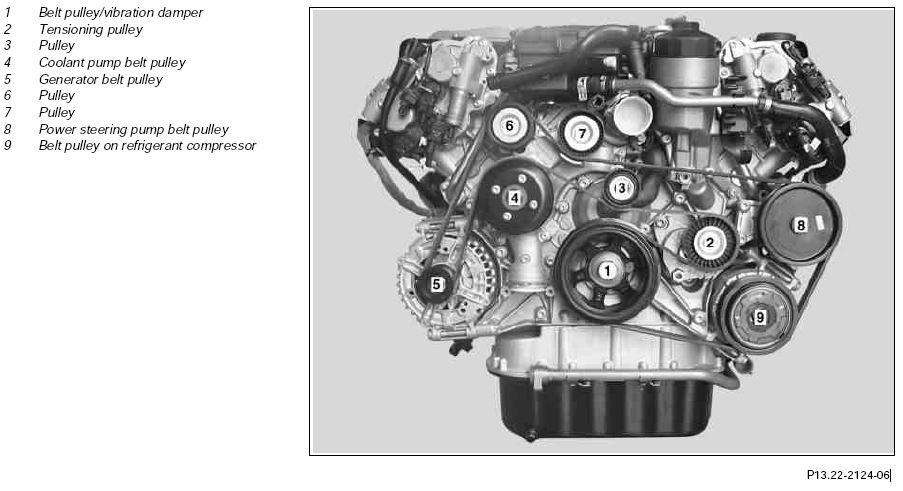

Fig 1: Identifying Routing Diagram Of Poly-V Belt (Engine 156)

G00546017

Courtesy of MERCEDES-BENZ USA
