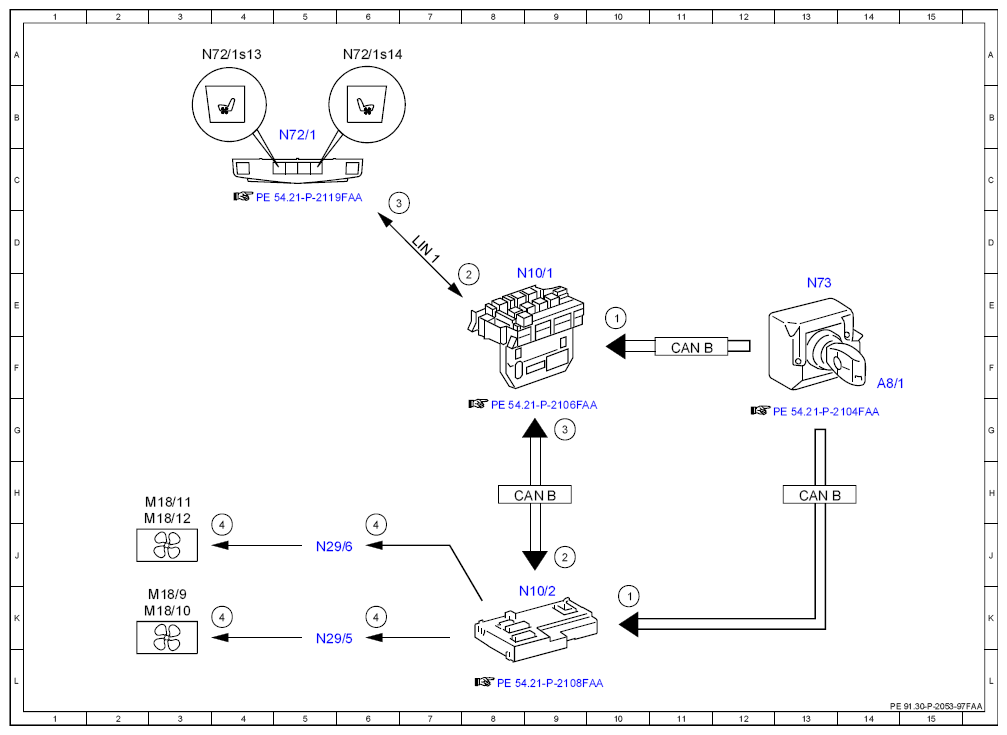

Seat ventilation electrical function schematic - PE91.30-P-2053-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10K |
| 1 | Circuit 15, status | 10E |
| 2 | Seat ventilation button, status | 9J |
| 2 | Seat ventilation button, status | 8E |
| 3 | Seat ventilation status indication, signal | 9G |
| 3 | Seat ventilation status indication, signal | 6C |
| 4 | Seat ventilation, actuation | 4K |
| 4 | Seat ventilation, actuation | 6K |
| 4 | Seat ventilation, actuation | 4J |
| 4 | Seat ventilation, actuation | 6J |
| A8/1 | Transmitter key | 14F |
| CAN B | Interior CAN | 9H |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 11F |
| LIN 1 | Instrument panel LIN | 7D |
| M18/10 | Left front backrest seat ventilation motors | 3K |
| M18/11 | Right front seat cushion seat ventilation motors | 3H |
| M18/12 | Right front backrest seat ventilation motors | 3H |
| M18/9 | Left front seat cushion seat ventilation motors | 3K |
| N10/1 | Front SAM control unit with fuse and relay module | 9E |
| N10/2 | Rear SAM control unit with fuse and relay module | 9K |
| N29/5 | Left front seat ventilation blower regulator | 5K |
| N29/6 | Right front seat ventilation blower regulator | 5J |
| N72/1 | Upper control panel control unit | 5B |
| N72/1s13 | Left front seat ventilation button | 3A |
| N72/1s14 | Right front seat ventilation button | 6A |
| N73 | Electronic ignition switch control unit | 13E |
