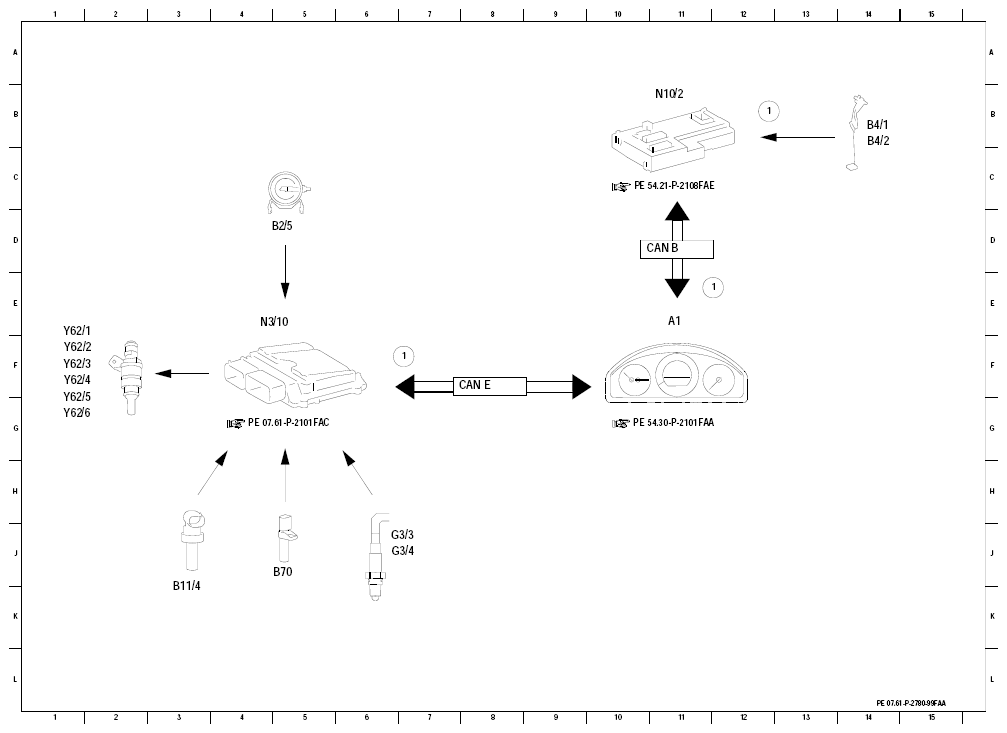

Electrical function schematic, flexible-fuel vehicle (FFV) - PE07.61-P-2780-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel level, signal | 7 F |
| 1 | Fuel level, signal | 11 E |
| 1 | Fuel level, signal | 12 B |
| A1 | Instrument cluster | 11 E |
| B11/4 | Coolant temperature sensor | 3 K |
| B2/5 | Hot film mass air flow sensor | 4 D |
| B4/1 | Left fuel level indicator sensor | 14 B |
| B4/2 | Right fuel level indicator sensor | 14 C |
| B70 | Crankshaft Hall sensor | 4 J |
| CAN B | Interior CAN | 10 D |
| CAN E | Chassis CAN | 7 F |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 6 J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 6 J |
| N10/2 | Rear SAM control unit with fuse and relay module | 11 B |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| Y62/1 | Cylinder 1 injection valve | 1 F |
| Y62/2 | Cylinder 2 injection valve | 1 F |
| Y62/3 | Cylinder 3 injection valve | 1 F |
| Y62/4 | Cylinder 4 injection valve | 1 F |
| Y62/5 | Cylinder 5 injection valve | 1 G |
| Y62/6 | Cylinder 6 injection valve | 1 G |
