Electrical function schematic, alternator interface ME - PE07.61-P-2755-97FAC

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Code:	Designation:	Position:
1	Alternator, request	4C
2	Alternator, status	4E
3	Circuit 61, status	4D
4	Instrument cluster, message	4J
A1	Instrument cluster	3J
B70	Crankshaft Hall sensor	6G
CAN E	Chassis CAN
G2	Alternator	4A
LIN C1	Drive train LIN
N3/10	ME-SFI [ME] control unit	3E

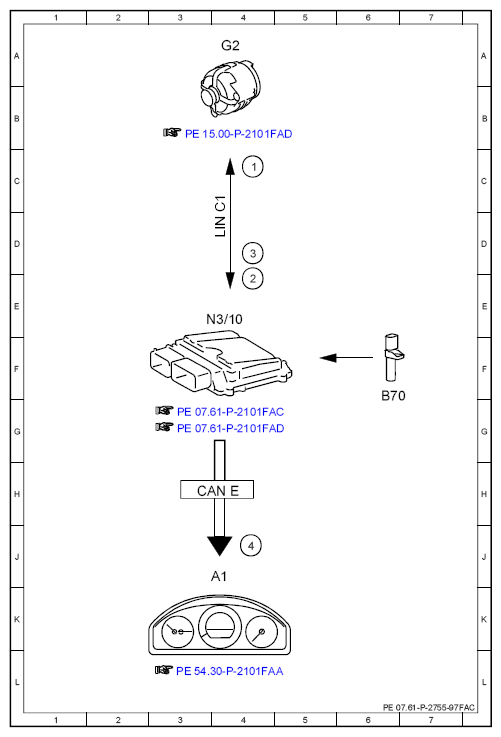

Fig 1: Alternator Interface ME Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
