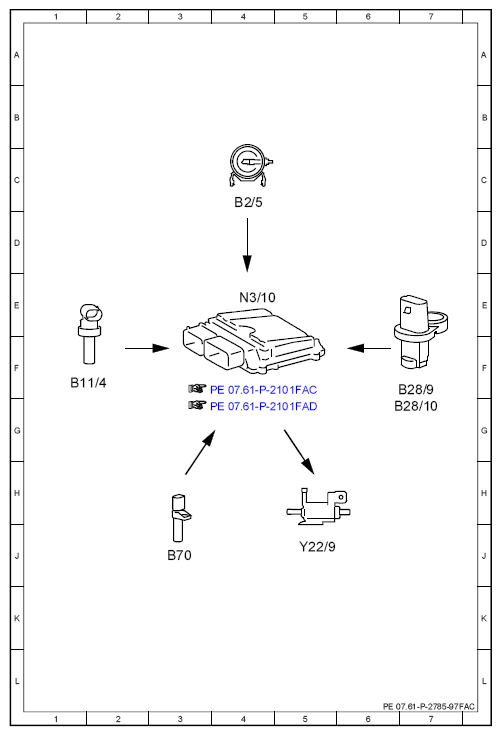

Electrical function schematic for tumble flap switchover - PE07.61-P-2785-97FAC
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 1F |
| B2/5 | Hot film mass air flow sensor | 4C |
| B28/10 | Right intake manifold tumble flap position sensor | 7G |
| B28/9 | Left intake manifold tumble flap position sensor | 7F |
| B70 | Crankshaft Hall sensor | 3J |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y22/9 | Intake manifold tumble flap switchover valve | 5J |
