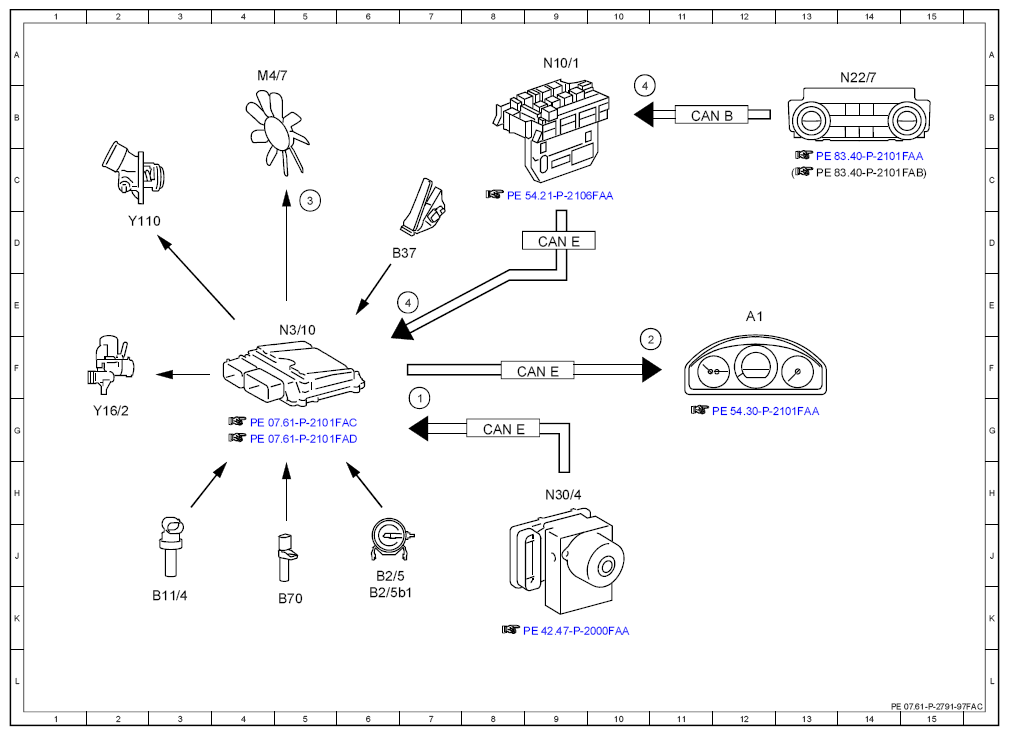

Electrical function schematic for thermal management - PE07.61-P-2791-97FAC
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 7G |
| 2 | Instrument cluster, message | 10F |
| 3 | Fan motor, specified RPM request | 5C |
| 4 | Air conditioning, status | 7E |
| 4 | Air conditioning, status | 10B |
| A1 | Instrument cluster | 12E |
| B11/4 | Coolant temperature sensor | 3K |
| B2/5 | Hot film mass air flow sensor | 6J |
| B2/5b1 | Intake air temperature sensor | 6K |
| B37 | Accelerator pedal sensor | 6D |
| B70 | Crankshaft Hall sensor | 5K |
| CAN B | Interior CAN | |
| CAN E | Chassis CAN | |
| CAN E | Chassis CAN | |
| CAN E | Chassis CAN | |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 9A |
| N22/7 | Automatic air conditioning control and operating unit | 14A |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 9H |
| Y110 | Coolant thermostat | 2D |
| Y16/2 | Heating system shutoff valve | 2G |
