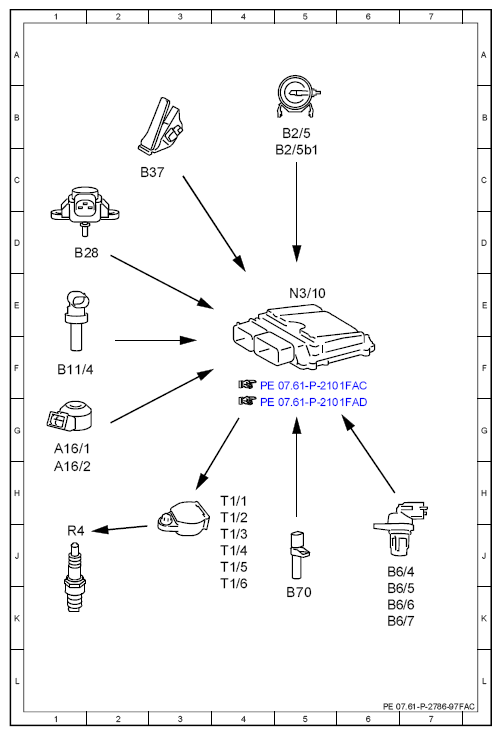

Electrical function schematic for knock control - PE07.61-P-2786-97FAC
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A16/1 | Right knock sensor | 1G |
| A16/2 | Left knock sensor | 1H |
| B11/4 | Coolant temperature sensor | 1F |
| B2/5 | Hot film mass air flow sensor | 5B |
| B2/5b1 | Intake air temperature sensor | 5C |
| B28 | Pressure sensor | 1D |
| B37 | Accelerator pedal sensor | 2C |
| B6/4 | Left intake camshaft Hall sensor | 6J |
| B6/5 | Right intake camshaft Hall sensor | 6K |
| B6/6 | Left exhaust camshaft Hall sensor | 6K |
| B6/7 | Right exhaust camshaft Hall sensor | 6K |
| B70 | Crankshaft Hall sensor | 5K |
| N3/10 | ME-SFI [ME] control unit | 5E |
| R4 | Spark plugs | 1J |
| T1/1 | Cylinder 1 ignition coil | 4H |
| T1/2 | Cylinder 2 ignition coil | 4H |
| T1/3 | Cylinder 3 ignition coil | 4J |
| T1/4 | Cylinder 4 ignition coil | 4J |
| T1/5 | Cylinder 5 ignition coil | 4J |
| T1/6 | Cylinder 6 ignition coil | 4K |
