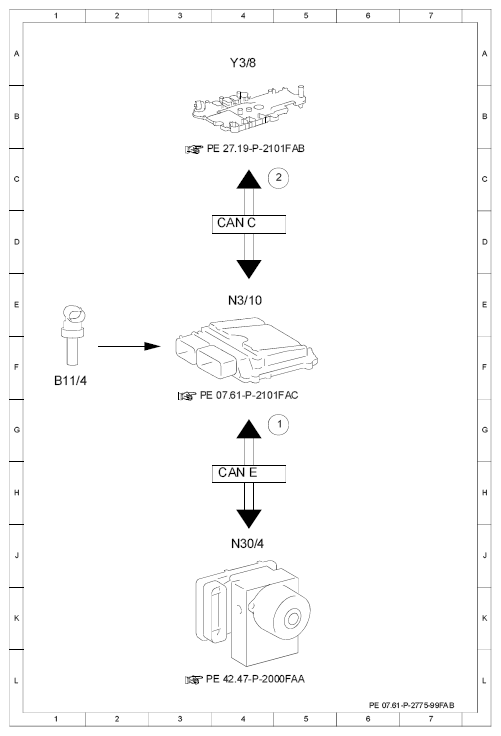

Electrical function diagram for transmission shift delay ME - PE07.61-P-2775-99FAB
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 5 G |
| 2 | Shift point, increase request | 5 C |
| B11/4 | Coolant temperature sensor | 1 F |
| CAN C | Drive train CAN | 4 D |
| CAN E | Chassis CAN | 4 H |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| N30/4 | Electronic Stability Program control unit | 4 J |
| Y3/8 | Fully integrated transmission control unit | 4 A |
