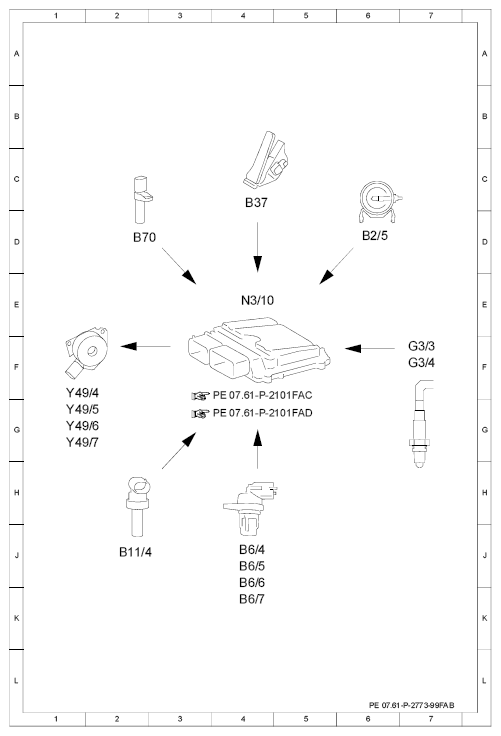

Electrical function diagram for camshaft adjustment ME - PE07.61-P-2773-99FAB
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 2 J |
| B2/5 | Hot film mass air flow sensor | 6 D |
| B37 | Accelerator pedal sensor | 4 D |
| B6/4 | Left intake camshaft Hall sensor | 4 J |
| B6/5 | Right intake camshaft Hall sensor | 4 J |
| B6/6 | Left exhaust camshaft Hall sensor | 4 K |
| B6/7 | Right exhaust camshaft Hall sensor | 4 K |
| B70 | Crankshaft Hall sensor | 2 D |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7 F |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 7 F |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| Y49/4 | Left intake camshaft solenoid | 1 G |
| Y49/5 | Right intake camshaft solenoid | 1 G |
| Y49/6 | Left exhaust camshaft solenoid | 1 G |
| Y49/7 | Right exhaust camshaft solenoid | 1 G |
