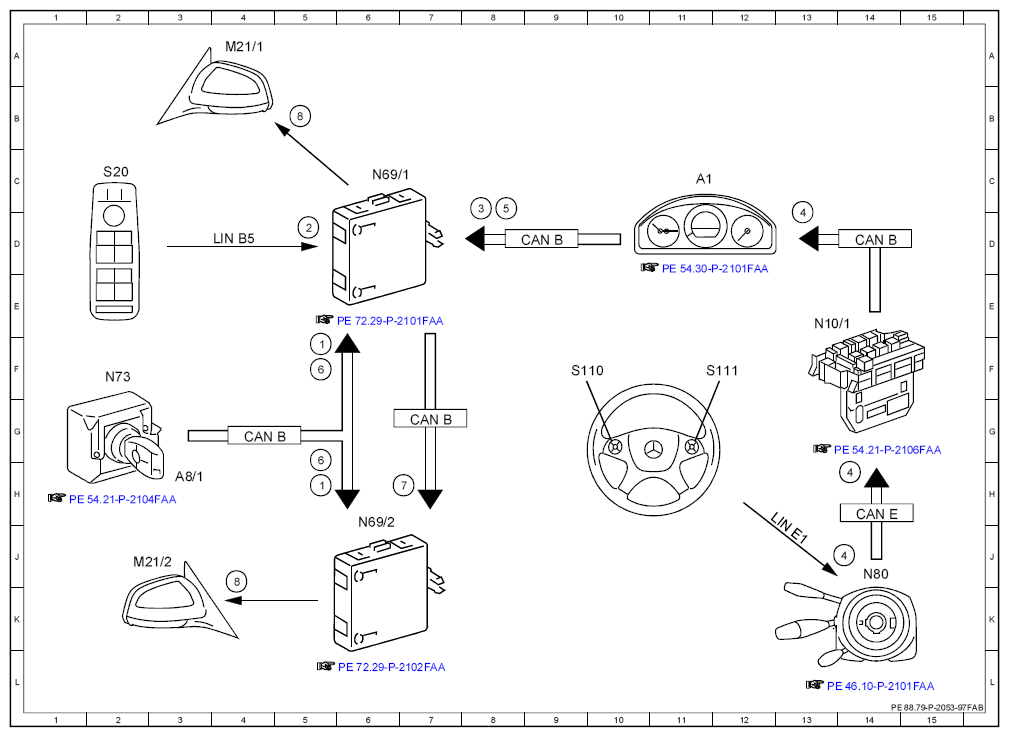

Electrical function schematic for mirror folding - PE88.79-P-2053-97FAB
WARNING: This page is about a different car, the 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C350, 2009 Mercedes-Benz C350, and 2008 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 with CODE (249) Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors
except CODE (494) USA version
except CODE (460) Canada version as of model year 2009 /YoM 08
MODEL 204.3
| Code : | Designation : | Position : |
|---|---|---|
| 1 | Circuit 15, status | 5H |
| 1 | Circuit 15, status | 5F |
| 2 | Driver-side switch group, status | 5D |
| 3 | Vehicle speed, signal | 8D |
| 4 | Multifunction steering wheel button group, signal | 14J |
| 4 | Multifunction steering wheel button group, signal | 14H |
| 4 | Multifunction steering wheel button group, signal | 13D |
| 5 | Automatic power folding mirrors, status | 8D |
| 6 | Central locking (CL[ZV]), status | 5F |
| 6 | Central locking (CL[ZV]), status | 5H |
| 7 | Outside mirror actuator motor, request | 7H |
| 8 | Outside mirror actuator motor, actuation | 4J |
| 8 | Outside mirror actuator motor, actuation | 5B |
| A1 | Instrument cluster | 11C |
| A8/1 | Transmitter key | 3H |
| CANB | Interior CAN | 9D |
| CANB | Interior CAN | 14D |
| CANB | Interior CAN | 4G |
| CANB | Interior CAN | 7G |
| CANE | Chassis CAN | 14H |
| LINB5 | Left door LIN | 4D |
| LINE1 | Steering LIN | 13J |
| M21/1 | Left outside mirror | 4A |
| M21/2 | Right outside mirror | 2J |
| N10/1 | Front SAM control unit with fuse and relay module | 13E |
| N69/1 | Left front door control unit | 6C |
| N69/2 | Right front door control unit | 6J |
| N73 | Electronic ignition switch control unit | 2F |
| N80 | Steering column module control unit | 14J |
| S110 | Left multifunction steering wheel button group | 9F |
| S111 | Right multifunction steering wheel button group | 11F |
| S20 | Driver-side power window and outside mirror adjustment switch group | 2C |
