Remove/install trunk lid handle - AR88.50-P-5062CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C350, 2009 Mercedes-Benz C350, and 2008 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0

Meaning of symbols (Logos) for picture/picture documents

OV00.01-P-1901-07A

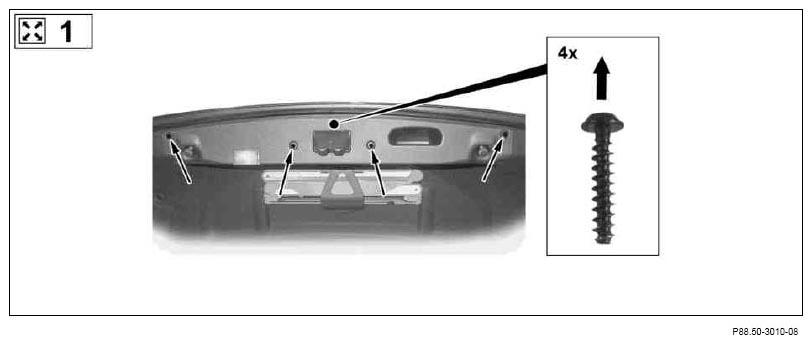

Fig 1: Identifying Trunk Lid Handle Remove/Install Components (1 Of 11)

Courtesy of MERCEDES-BENZ USA

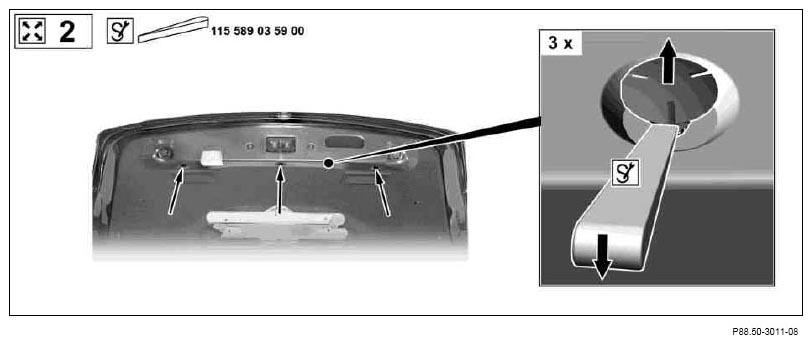

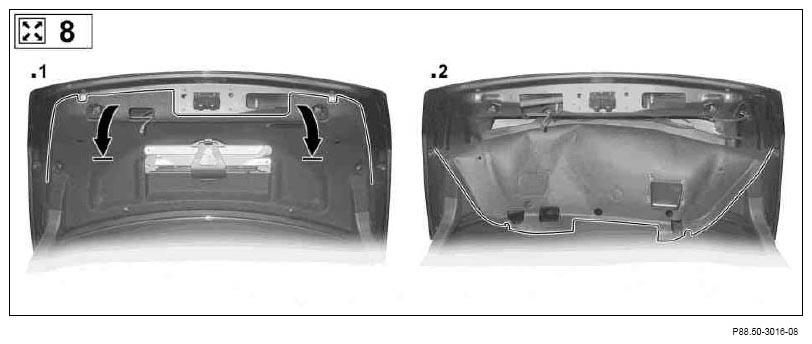

Fig 2: Identifying Trunk Lid Handle Remove/Install Components (2 Of 11)

Courtesy of MERCEDES-BENZ USA

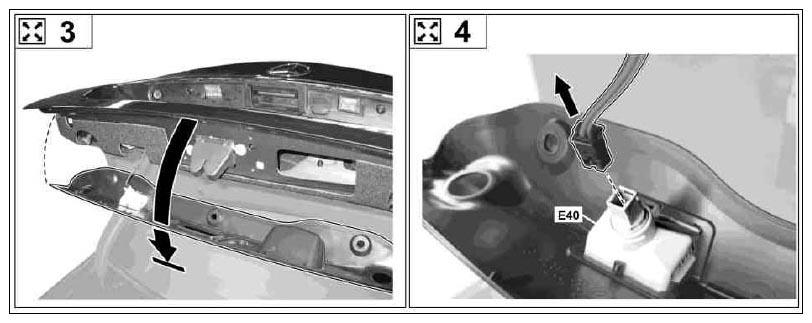

Fig 3: Identifying Trunk Lid Handle Remove/Install Components (3 Of 11)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Trunk Lid Handle Remove/Install Components (4 Of 11)

Courtesy of MERCEDES-BENZ USA

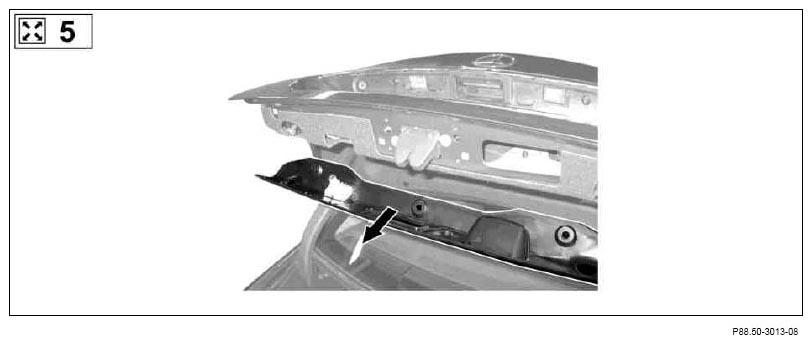

Fig 5: Identifying Trunk Lid Handle Remove/Install Components (5 Of 11)

Courtesy of MERCEDES-BENZ USA

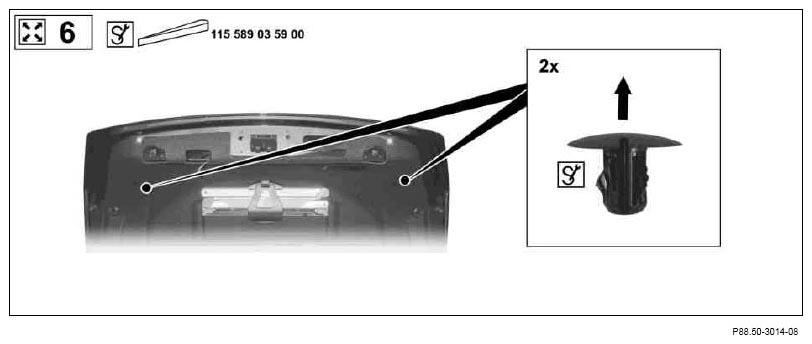

Fig 6: Identifying Trunk Lid Handle Remove/Install Components (6 Of 11)

Courtesy of MERCEDES-BENZ USA

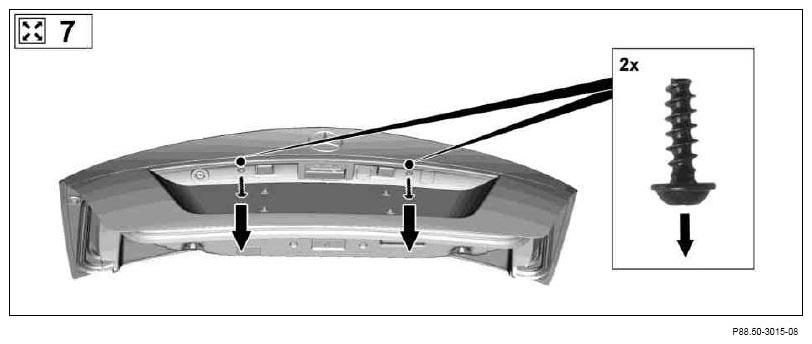

Fig 7: Identifying Trunk Lid Handle Remove/Install Components (7 Of 11)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Trunk Lid Handle Remove/Install Components (8 Of 11)

Courtesy of MERCEDES-BENZ USA

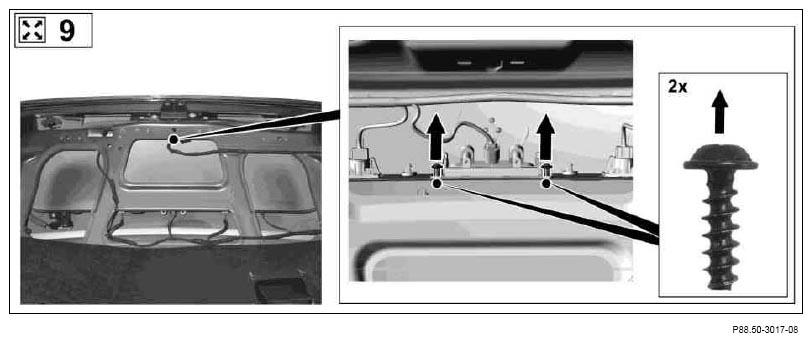

Fig 9: Identifying Trunk Lid Handle Remove/Install Components (9 Of 11)

Courtesy of MERCEDES-BENZ USA

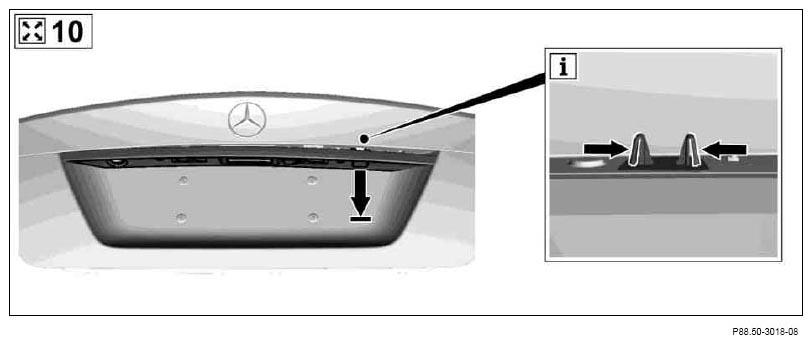

Fig 10: Identifying Trunk Lid Handle Remove/Install Components (10 Of 11)

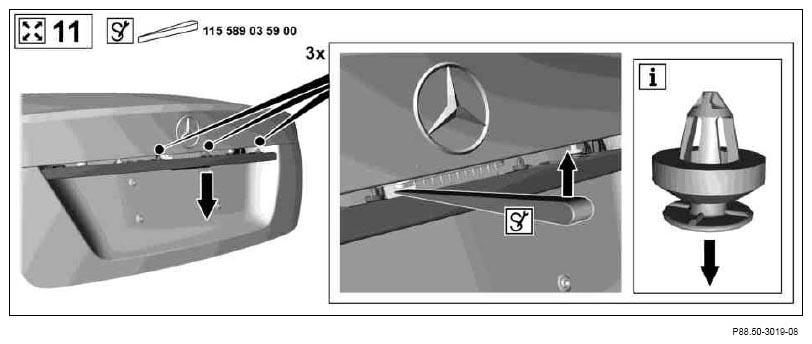

Courtesy of MERCEDES-BENZ USA

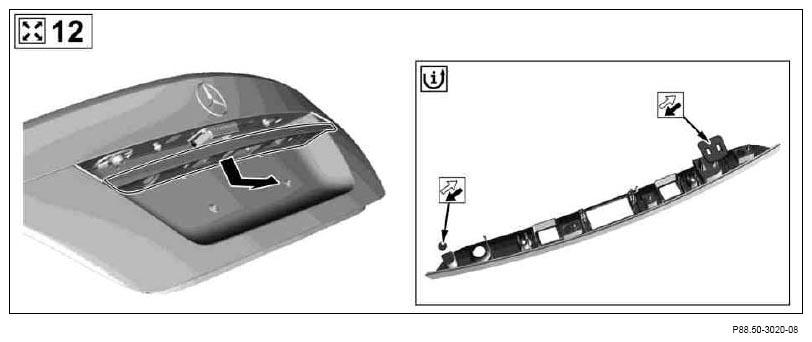

Fig 11: Identifying Trunk Lid Handle Remove/Install Components (11 Of 11)

Courtesy of MERCEDES-BENZ USA

12 to 1
