Overview of system components for electric mirror - GF88.79-P-9996CE
WARNING: This page is about a different car, the 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C350, 2009 Mercedes-Benz C350, and 2008 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 as of model year 2009
/YoM 08
MODEL 204.3
MODEL 204.9

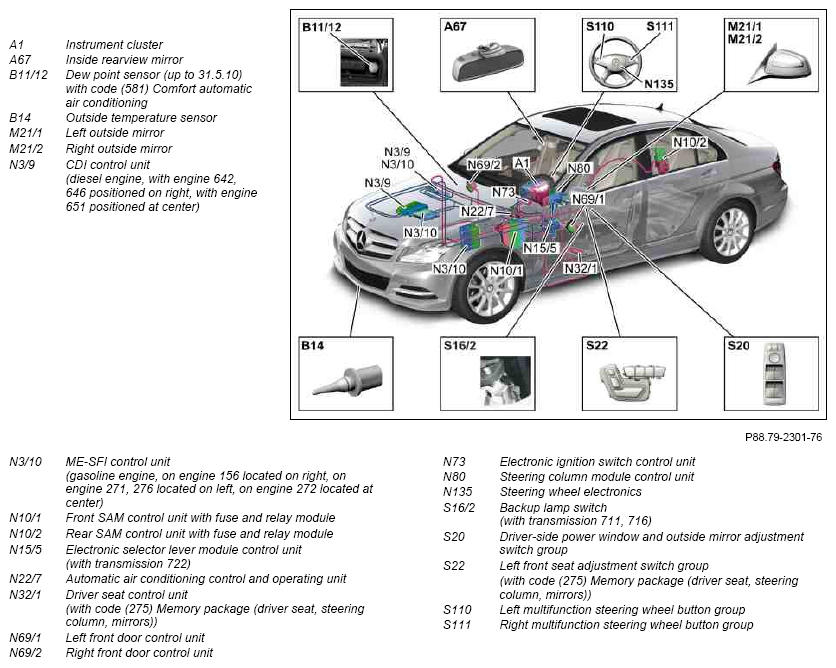

Shown on model 204.0
| Component description for instrument cluster | A1 | GF54.30-P-6000CE |
| Component description for CDI control unit | N3/9 On engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG |
| On engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | |
| On engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | |
| With engine 651.9 | GF07.16-P-6000OM | |
| Component description for ME-SFI [ME] control unit | N3/10 With engine 156 in model 204.0/2 |
GF07.61-P-6000MAW |
| On engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | |
| On engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | |
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MI | |
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | |
| With engine 276.9 | GF07.61-P-6000MM | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE |
| Component description for electronic selector lever module control unit | N15/5 With transmission 722.6 |
GF27.60-P-5163ACW |
| With transmission 722.9 | GF27.60-P-5163AHW | |
| Component description for automatic air conditioning control and operating unit | N22/7 Without code (581) Comfort automatic air conditioning |
GF83.40-P-3000CEA |
| With code (581) Comfort automatic air conditioning | GF83.40-P-3000CEB | |
| Component description for driver seat control unit | N32/1 With code (275) Memory package (driver seat, steering column, mirrors) |
GF91.29-P-5231CE |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CE |
| Inside rearview mirror, component description | A67 | GF68.49-P-2106CE |
| Table of contents for function description of electric mirrors | GF88.79-P-0996CE |
